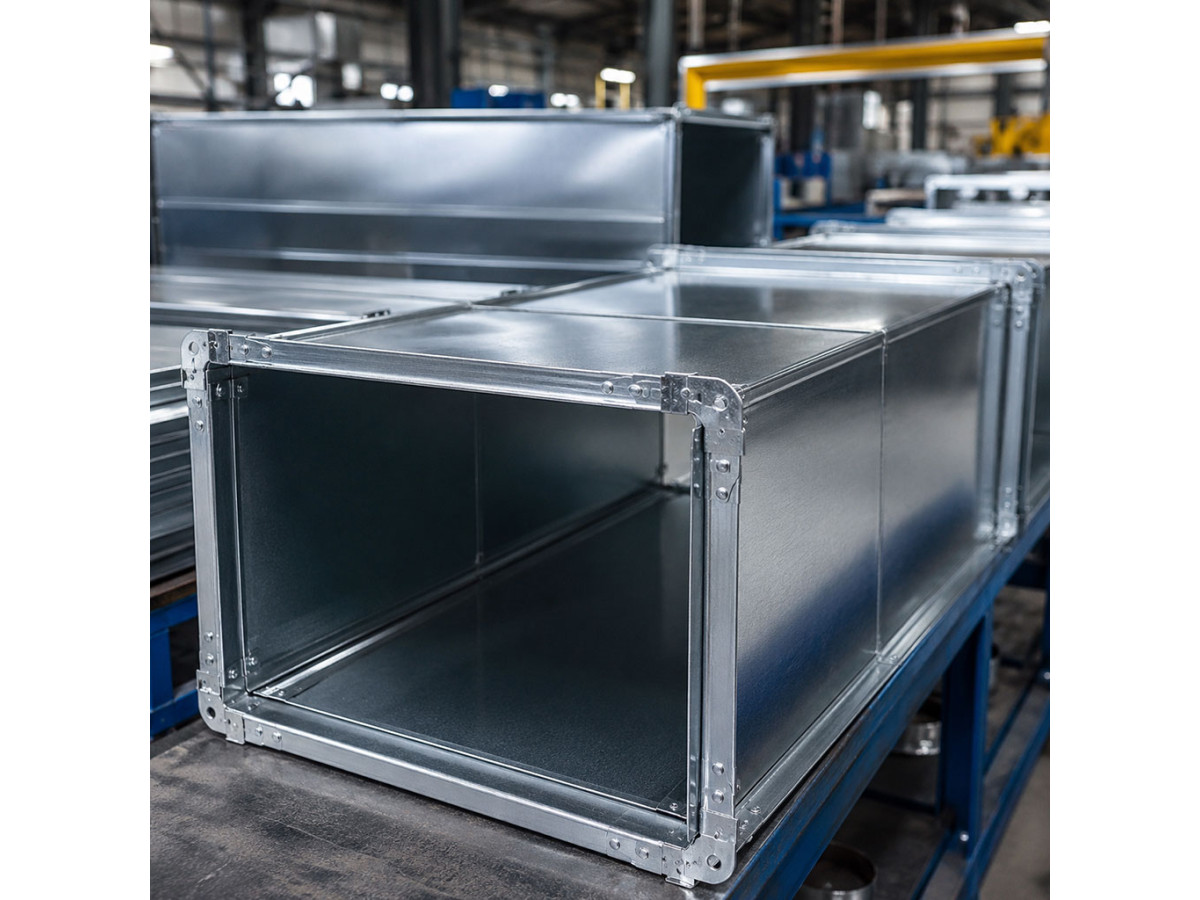

TDF/TDC (Transverse Duct Flange / Transverse Duct Connection) is a modern standard for rectangular HVAC duct fabrication. It replaces older Pittsburgh and S-drive systems by offering faster assembly, better sealing, and lower labor costs. Below is a complete guide to the essential machines required for a professional HVAC duct production workshop, including prices, advantages, and ROI.

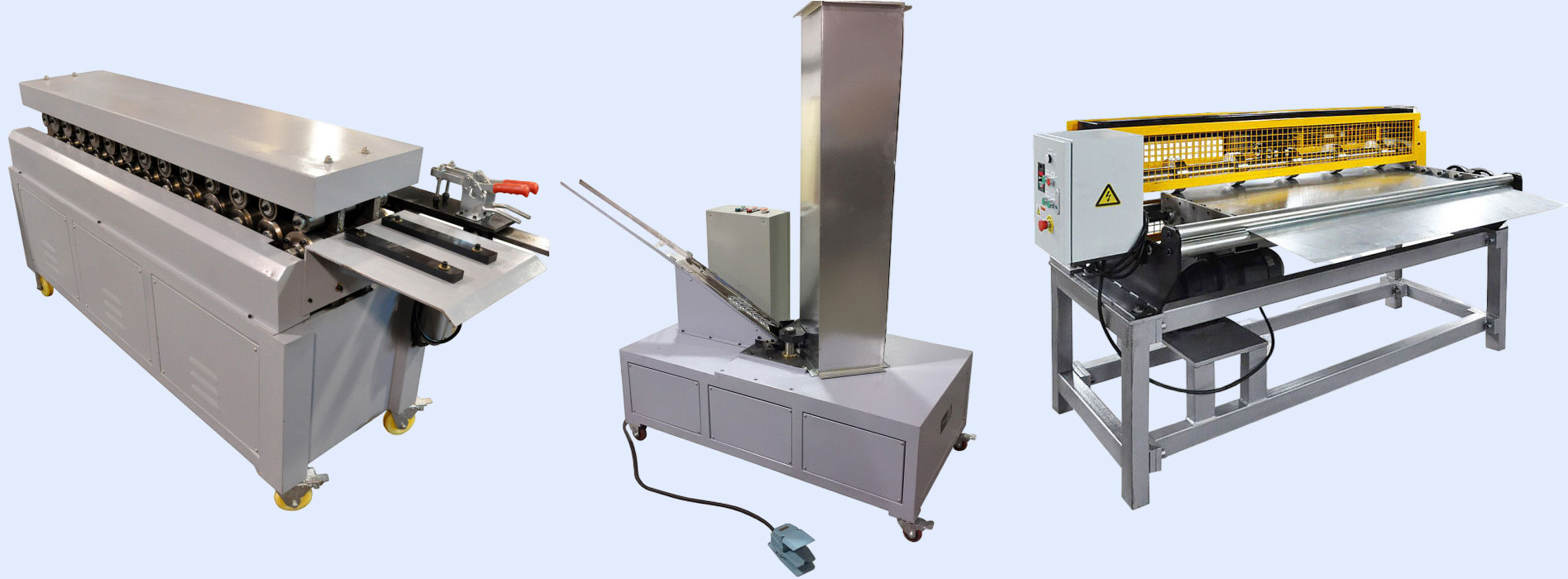

1. TDF/TDC Roll Forming Machine

The TDF/TDC roll forming machine is the core of modern HVAC duct production. It forms standardized flanges directly on sheet metal, eliminating manual flange fabrication.

Price: $15,000 – $80,000+

• Automatically forms TDF/TDC flanges
• Ensures consistent duct geometry
• Reduces manual labor and errors
• Production speed: 30–50 ft/min

ROI: 8–18 months

2. Corner Fixing Machine

The corner fixing machine is used to insert and crimp TDF/TDC corners into duct flanges, making joints strong and airtight.

Price: $3,000 – $12,000

• Fast pneumatic corner installation
• One operator operation
• Improves joint strength and sealing
• Eliminates manual hammering and riveting

ROI: 6–12 months

3. Slitting / Cut-to-Length Machine

This Sheet Metal Slitter Machine processes metal coils into precise widths and lengths before fabrication.

Price: $2,000 – $15,000

• Reduces material waste
• Enables use of cheaper coil material
• Improves production efficiency

ROI: 6–18 months

4. Pneumatic HVAC Duct Brake

A specialized bending machine designed for TDF/TDC rectangular ductwork.

Price: $6,000 – $25,000

• High precision bending
• Works with preformed flanges
• One-operator pneumatic operation

ROI: 12–24 months

5. Beading Machine

Square Duct Beading Machine. Adds reinforcement beads to duct panels to improve rigidity and prevent deformation.

Price: $2,000 – $12,000

• Strengthens duct panels
• Reduces vibration and noise
• Improves product quality

ROI: 12–24 months

Conclusion

A complete TDF/TDC HVAC production line includes a roll former, corner fixing machine, duct brake, slitting system, lock former, and beading machine. Together, these machines significantly reduce labor costs, increase production speed, and improve product quality.

Typical investment ranges from $20,000 for a small workshop to $150,000+ for a medium commercial production line. With proper workload, ROI is usually achieved within 8–24 months.
