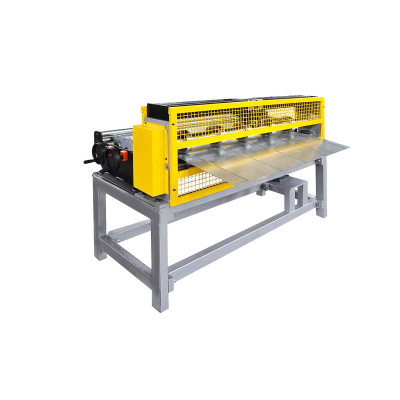

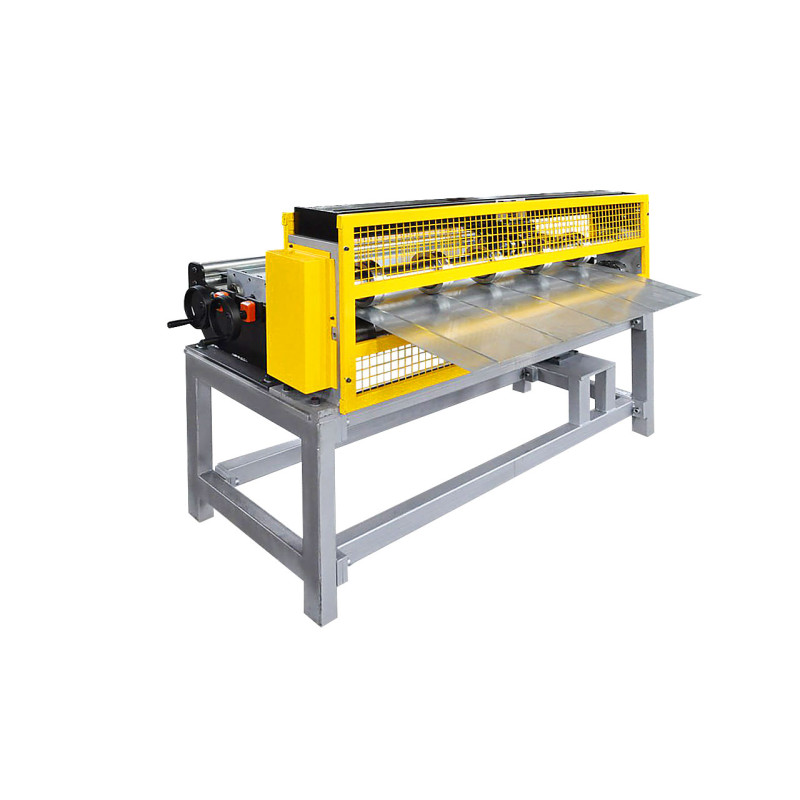

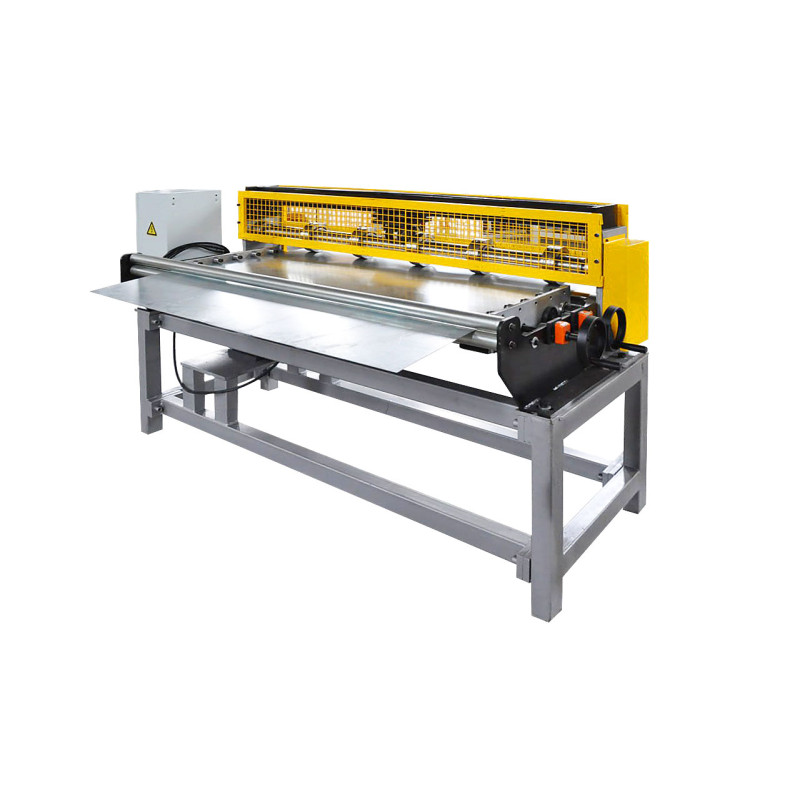

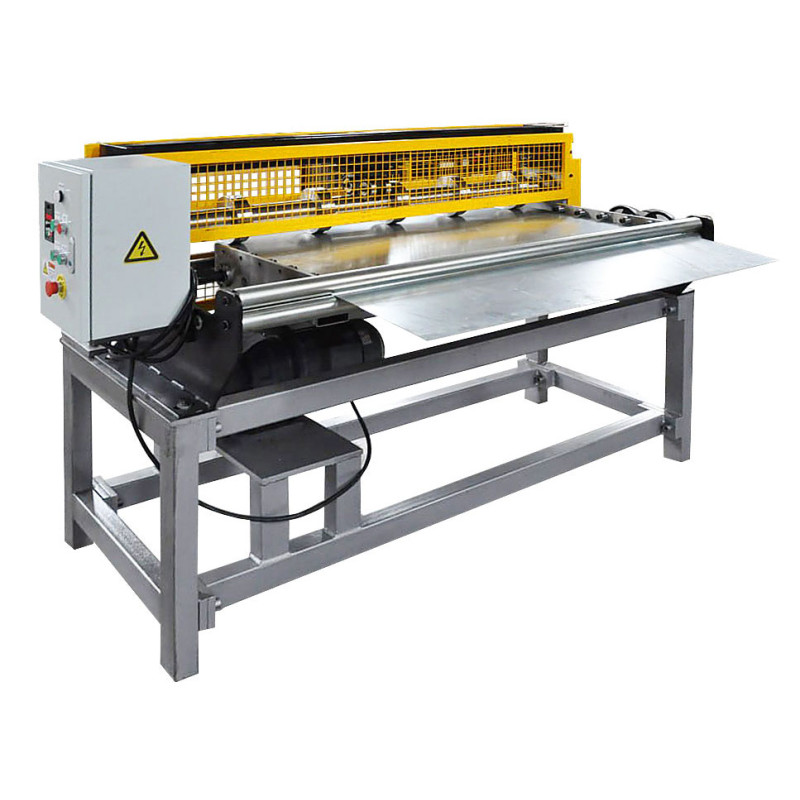

Square Duct Beading Machine for HVAC Systems

The Square Duct Beading Machine is a heavy-duty industrial solution designed for strengthening and reinforcing sheet metal used in rectangular HVAC duct fabrication. This machine creates precise bead patterns (ribs) on flat metal sheets, significantly improving rigidity, structural stability, and resistance to deformation during air pressure operation.

What This Machine Does

This equipment forms parallel reinforcing beads on sheet metal panels before they are folded and assembled into square or rectangular air ducts. These beads prevent vibration, bending, and panel collapse in large HVAC duct systems.

• Forms reinforcing ribs (beads) on flat sheet metal
• Improves structural strength of duct panels
• Prepares metal for duct folding and assembly
• Supports high-volume HVAC production workflows

Who This Machine Is For

This beading machine is essential for HVAC manufacturers, duct fabrication workshops, and sheet metal processing facilities that produce rectangular duct systems for commercial, industrial, and residential buildings.

• HVAC duct fabrication shops
• Sheet metal manufacturing companies
• Industrial ventilation system producers
• Construction contractors specializing in HVAC installation

Technical Specifications

• Working width: up to 60 inches
• Material thickness: 18–26 gauge (varies depending on number of beads)
• Shaft diameter: 3.35 inches with bearing-supported top and bottom shafts

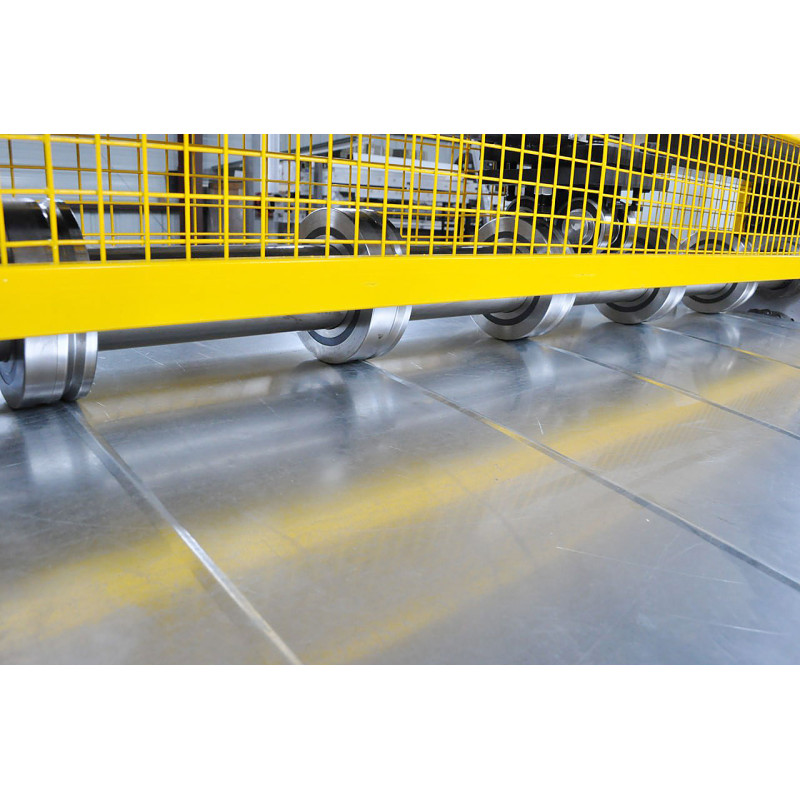

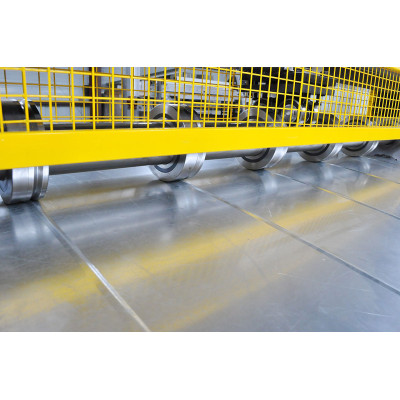

• Roller sets: four pairs of precision beading rollers included
• Operating speed: up to 150 feet per minute
• Power supply: 20A, 210–240V single-phase or three-phase
• Motor: Industrial-grade AC motor

Optional Features

• Variable Frequency Drive (VFD) speed control for adjustable operation
• Slitting roller system for additional processing capability

Why This Machine Is Necessary

In HVAC duct manufacturing, structural strength is critical. Without beading, large rectangular ducts are prone to flexing, vibration, and air leakage under pressure. This leads to reduced system efficiency, noise issues, and potential failure in long-term operation.

The beading process ensures:

• Increased rigidity of duct panels
• Reduced vibration and noise in HVAC systems
• Improved air pressure resistance
• Longer service life of installed ductwork
