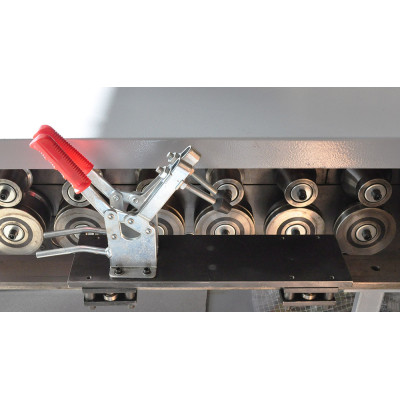

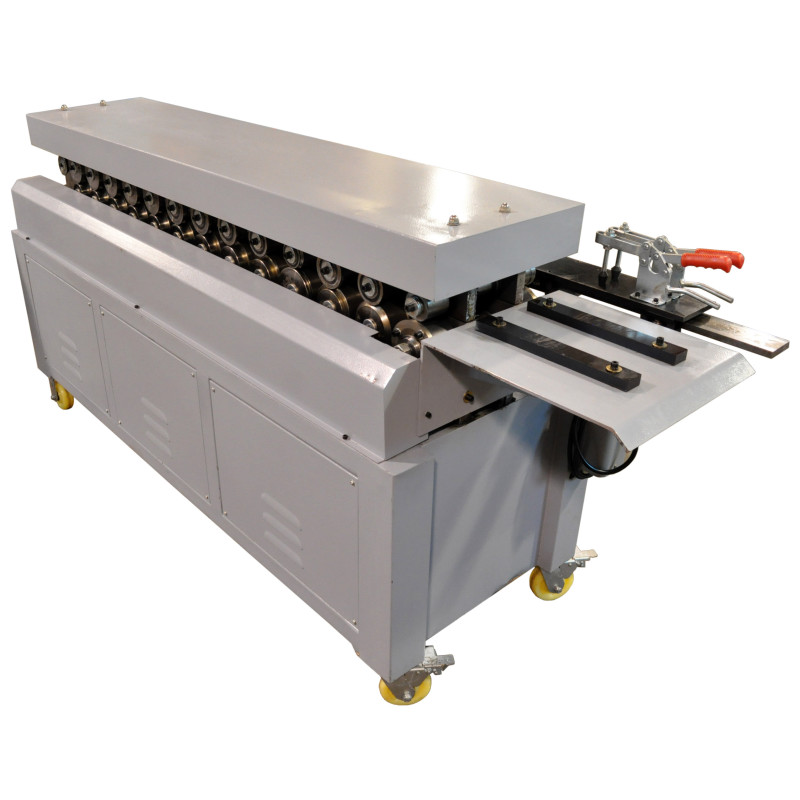

TDFC TDCF Lock & Cleats Roll-Former

Product Code: DFC TDCF Lock & Cleats Roll-Former

In Stock

$ 16 000

Ask a question

Financing affordable payment plans

Product description

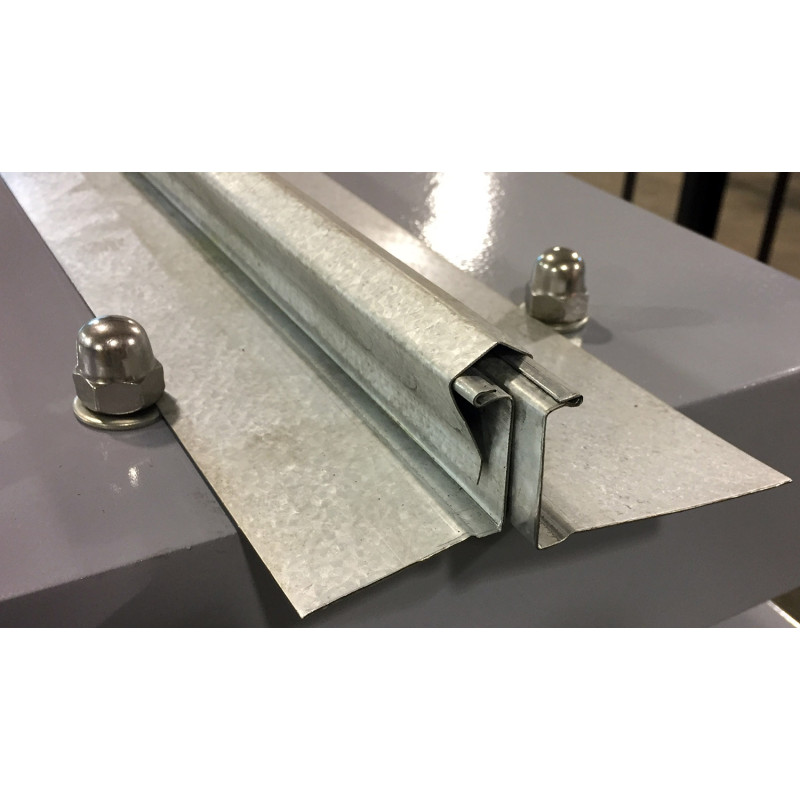

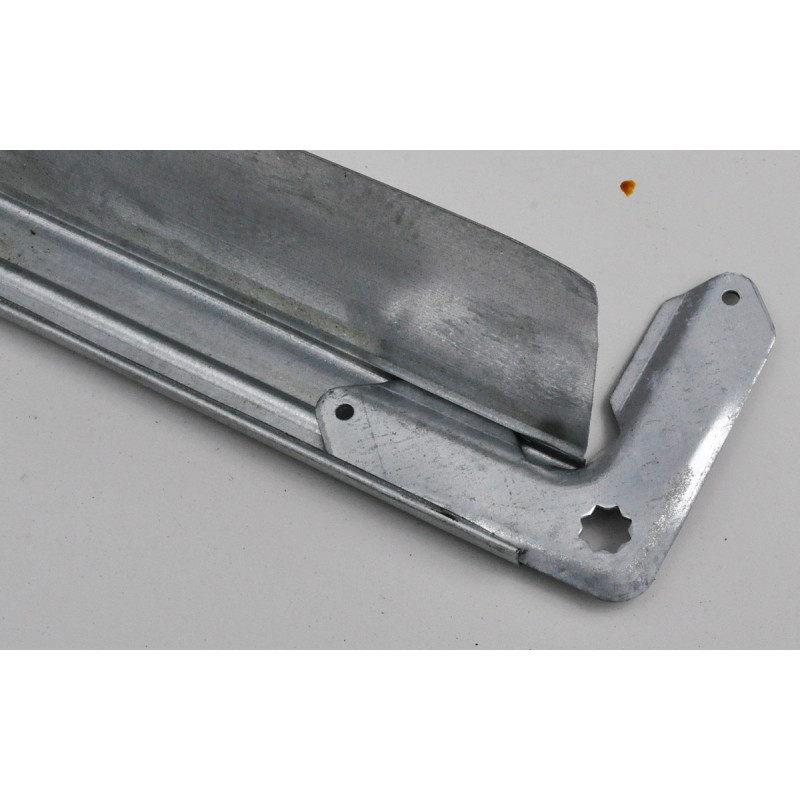

The TDFC TDCF Lock & Cleats Roll-Former is a high-precision industrial machine designed for automated production of HVAC duct components from sheet metal. It is used to form TDF/TDC flanges, locks, and cleats, ensuring accurate geometry and consistent quality of duct connections. The machine significantly simplifies the duct fabrication process and increases workshop productivity.

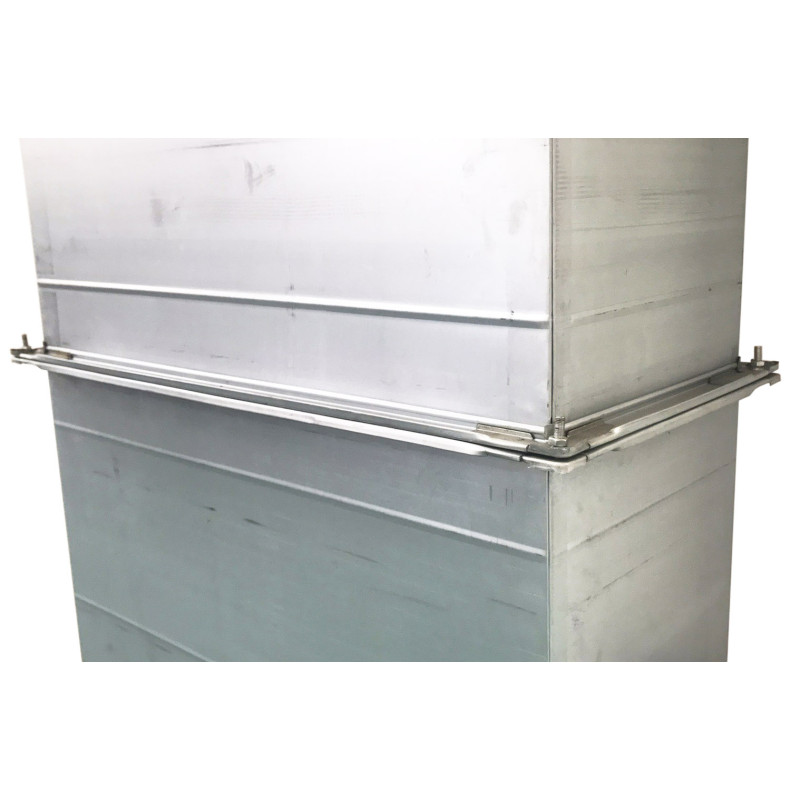

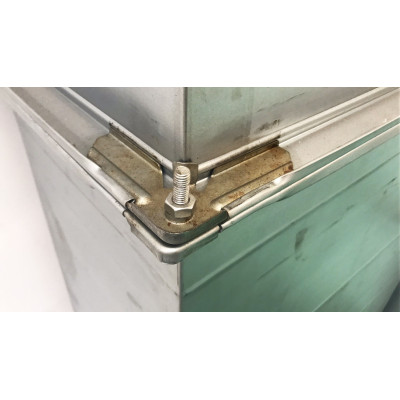

This is a key machine in the production of rectangular (square) HVAC air ducts, as it provides the main connection system used for assembling duct sections quickly, securely, and with high structural strength.

Where It Is Used

HVAC duct manufacturing facilities
Sheet metal processing plants
Ventilation system fabrication workshops
Industrial metal fabrication companies
Commercial and industrial construction projects

Technical Specifications

Rolling speed: up to 45 ft/min
Forming passes: 15 (flange), 14 (cleat)
Material thickness: 18–24 gauge (flange), up to 22 gauge (cleat)
Main motor power: 5 HP / 220–240V / 60Hz / 3-phase
Dimensions: 110" × 30" × 48"
Weight: 2100 lbs

Benefits

Faster duct production process
Reduced labor and operating costs
High precision and repeatability
Minimal manual operations required
Compatible with TDF/TDC standard systems
Increased overall production efficiency
Key machine for rectangular HVAC duct manufacturing
