In today's competitive HVAC duct fabrication industry, manufacturers and contractors are constantly looking for ways to increase productivity while reducing equipment and labor costs. One of the most effective ways to achieve this goal is by investing in a versatile roll forming machine capable of performing multiple operations in a single production cycle.

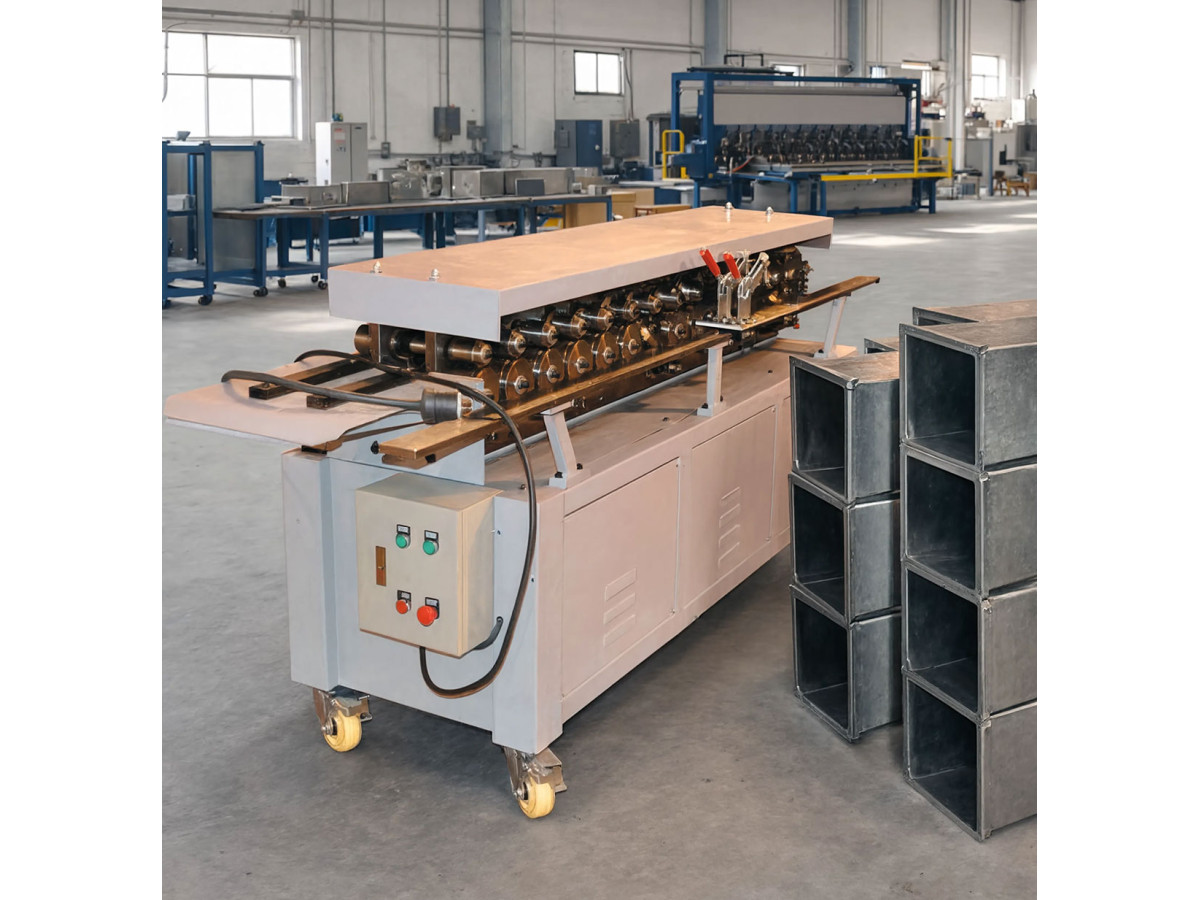

The TDF Roll Former is designed specifically for HVAC sheet metal fabrication shops that need a reliable, efficient, and cost-effective solution for producing rectangular and square duct components. Unlike many traditional American roll formers that require separate machines or additional tooling, this equipment combines TDF flanges, TDC flanges, locks, and cleats production in one compact machine.
One Machine, Multiple Functions

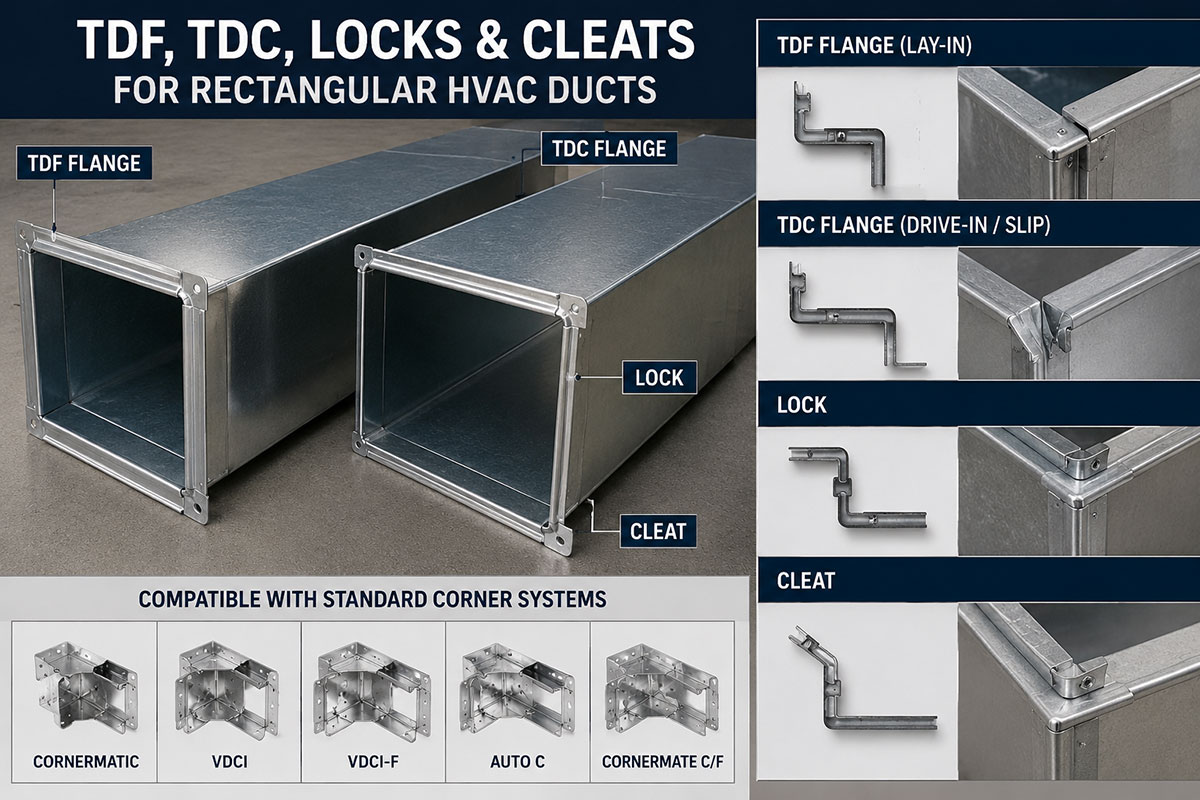

The TDFC/TDCF Flange Forming Machine is engineered to streamline HVAC duct production by integrating several critical operations into a single system:
- Standard TDF flange forming
- Standard TDC flange forming
- Lock forming
- Cleat production
- Reinforced and flat flange profiles
- Scrap material conversion into cleats
This multi-functional approach significantly reduces production time, minimizes material waste, and eliminates the need for multiple dedicated machines.
Reduce Equipment Investment Costs
Many HVAC fabrication shops invest in separate roll formers for TDF flanges, TDC flanges, locks, and cleats. Premium American-made equipment often represents a substantial capital investment, especially for growing businesses.
The TDFC/TDCF Roll Former offers a practical alternative by delivering the essential functionality required for modern HVAC duct manufacturing in a single machine. This allows fabricators to expand production capabilities while keeping equipment costs under control.
Key Cost Advantages
- Lower initial equipment investment
- Reduced shop floor space requirements
- Fewer operators required
- Lower maintenance costs
- Reduced tooling expenses
- Faster return on investment
Designed for High-Volume HVAC Duct Fabrication
The machine is designed for continuous production of rectangular and square HVAC ducts. It is fully compatible with standard industry components and corner systems, including:
- Cornermatic
- VDCI
- VDCI-F
- Auto C
- Cornermate C/F
By maintaining compatibility with widely used HVAC duct standards, fabricators can easily integrate the machine into existing production workflows.
Increase Productivity and Consistency
Manual flange fabrication involves multiple labor-intensive steps, including cutting, deburring, flange forming, fitting, and fastening. These processes consume valuable production time and increase the risk of dimensional inconsistencies.
With the TDFC/TDCF Roll Former, operators simply prepare the sheet metal and allow the machine to perform the forming process automatically.
- Faster production cycles
- Improved dimensional accuracy
- Consistent flange quality
- Reduced labor requirements
- Higher overall productivity
Technical Performance
| Roll Forming Speed | 45 ft/min |
| Forming Stations | 15 flange + 14 cleat |
| Flange Capacity | 18–24 gauge steel |
| Cleat Capacity | 22 gauge steel |
| Main Motor | 5 HP, 220–240V, 60Hz, 3 Phase |
| Machine Weight | 2,100 lbs |
How Does It Compare to Other Roll Forming Systems?
Many HVAC fabrication shops compare equipment based on functionality, investment cost, and return on investment.
| Feature | TDFC/TDCF Roll Former | Comparable American Machines |
|---|---|---|
| TDF Flange Production | ✓ | ✓ |
| TDC Flange Production | ✓ | Often Optional |
| Lock Forming | ✓ | Additional Equipment Required |
| Cleat Production | ✓ | Optional Tooling |
| Multi-Function Operation | ✓ | Limited |
| Machine Footprint | Compact | Larger |
| Investment Cost | Less than 50% | Higher |
| ROI Period | Fast | Longer |
Why Buy Direct From the Manufacturer?
- ✓ Manufacturer-direct pricing
- ✓ Up to 50% lower investment cost
- ✓ No distributor markups
- ✓ 3-year warranty
- ✓ In stock in USA
- ✓ Fast nationwide delivery
- ✓ Technical support
- ✓ Spare parts availability
- ✓ Factory-tested equipment
- ✓ Fast return on investment
Why HVAC Fabricators Choose TDFC/TDCF Roll Formers
- ✓ TDF and TDC production in one machine
- ✓ Integrated lock and cleat forming
- ✓ Reduced labor costs
- ✓ Lower capital investment
- ✓ Compact machine footprint
- ✓ Fast production speed
- ✓ Standard HVAC compatibility
- ✓ Reliable industrial construction
- ✓ Manufacturer-direct pricing
- ✓ Excellent ROI
About Stangroup
Stangroup is the official distributor of Liberty Seamless Machinery (DBA), supplying professional HVAC sheet metal fabrication equipment to manufacturers and contractors worldwide.
The company specializes in roll forming machines, HVAC duct fabrication equipment, and industrial sheet metal machinery. Every TDFC/TDCF Flange Forming Machine is factory-tested before shipment and supported by technical assistance, spare parts availability, and warranty service.
Our mission is to provide HVAC manufacturers with reliable, high-performance equipment at competitive manufacturer-direct pricing.
Frequently Asked Questions
What materials can the machine process?
The machine processes 18–24 gauge steel for TDF/TDC flanges and up to 22 gauge steel for cleat production.
Is the machine compatible with standard TDF and TDC systems?
Yes. The machine is fully compatible with standard TDF and TDC profiles, including Cornermatic, VDCI, VDCI-F, Auto C, and Cornermate C/F systems.
Can one machine produce TDF, TDC, locks, and cleats?
Yes. The TDFC/TDCF Roll Former combines all four operations in one machine.
Is the machine available in the United States?
Yes. Selected models are available from stock in the USA for fast nationwide delivery.
What warranty is included?
The machine is supplied with a 3-year manufacturer's warranty.
Who is this machine designed for?
The equipment is designed for HVAC duct manufacturers, sheet metal fabrication shops, ventilation contractors, and industrial air duct production facilities.
How quickly can the machine pay for itself?
Depending on production volume and labor costs, many HVAC fabrication companies achieve a return on investment significantly faster than with multiple dedicated machines.
Ready to Upgrade Your HVAC Duct Production?
Discover how the TDFC/TDCF Flange Forming Machine can help you produce TDF, TDC, locks, and cleats in one machine while reducing equipment and labor costs.
View the complete specifications, features, pricing information, and availability details on our product page.
➜ Visit the TDFC/TDCF Flange Forming Machine Product Page
In Stock in USA • Manufacturer-Direct Pricing • 3-Year Warranty
