TDF Flange Forming Machine Price, Configuration & ROI

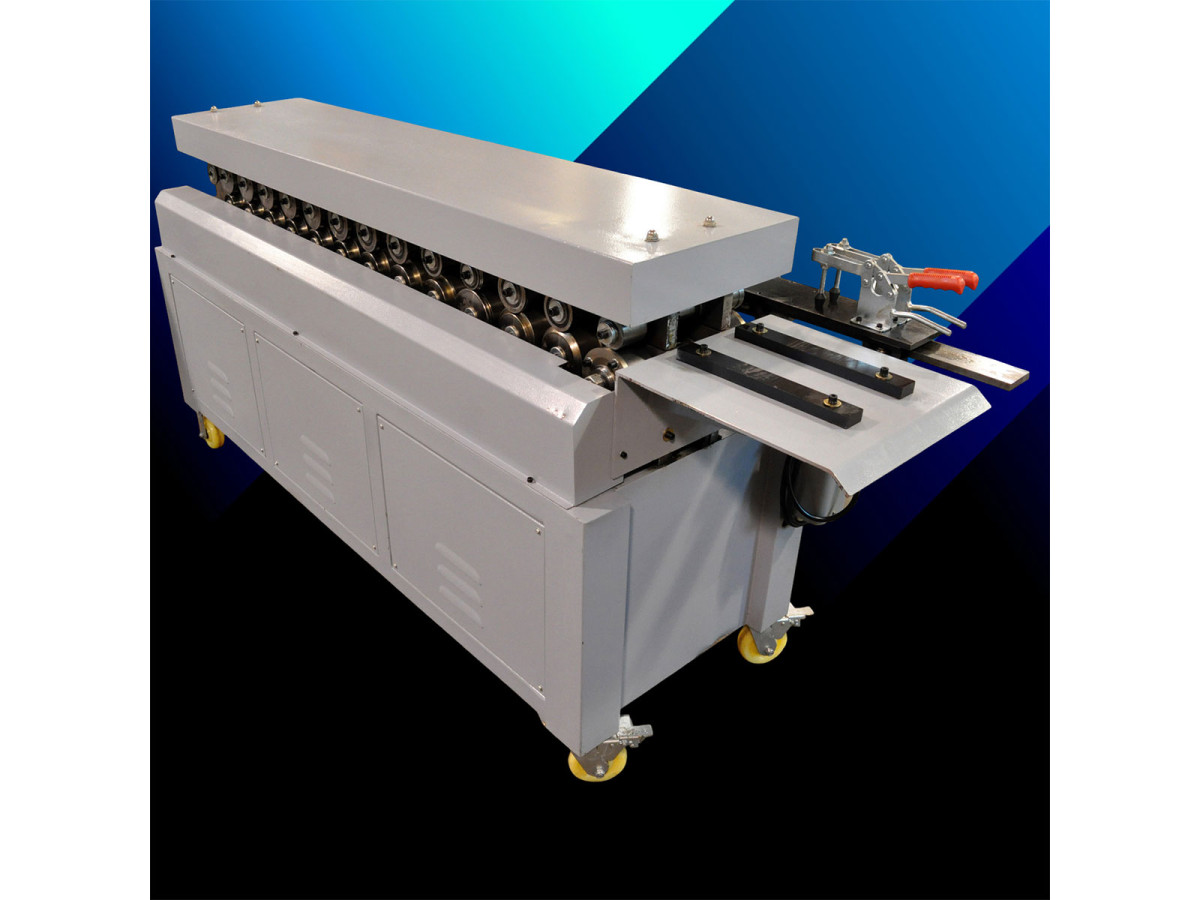

TDF Flang Forming Machine is a high-performance HVAC duct production machine designed for automatic forming of TDC / TDF flanges, locks, and cleats used in rectangular ventilation duct systems.

It replaces manual duct fabrication and transforms sheet metal into ready-to-assemble HVAC duct sections in a continuous roll-forming process.

Machine Configuration

• 15-stage flange forming system
• 14-stage cleat forming system

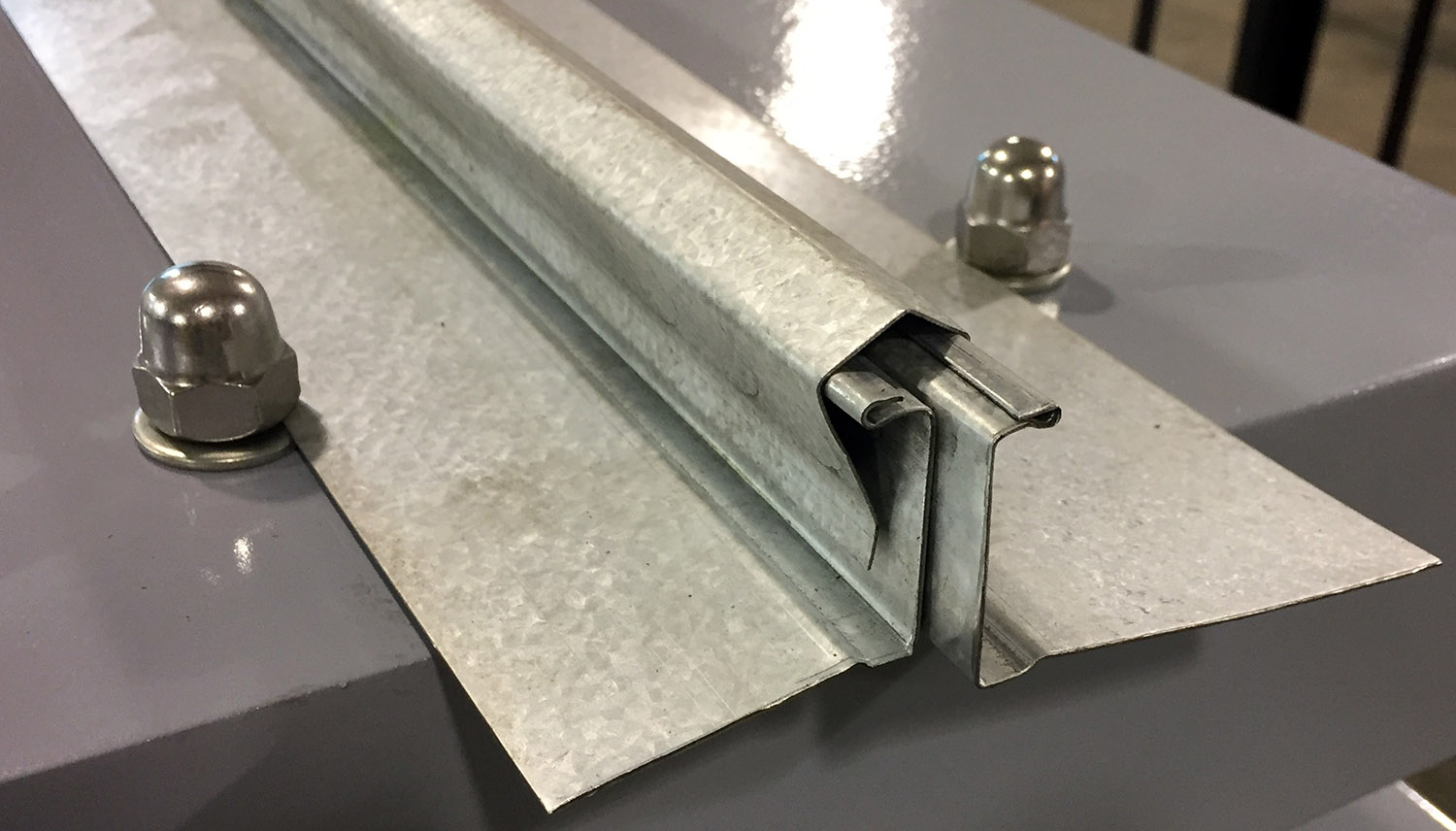

• Integrated lock & cleat roll-forming unit
• Convertible flange system (flat / grooved)
• Main motor: 5 HP / 220–240V / 3-phase / 60Hz
• Production speed: up to 45 ft/min
• Material capacity: 18–24 gauge (flange), 22 gauge (cleat)
• Size: 110" × 30" × 48"
• Weight: ~2100 lbs

Price Range

• Basic industrial unit: $8,000 – $12,000
• Standard production system: $12,000 – $18,000
• Heavy-duty HVAC line: $18,000 – $25,000+

Production Comparison

Manual Production (Before)

• 8–12 ducts per hour
• 3–4 workers required
• High scrap rate (8–12%)
• Monthly cost: $11,000 – $18,000

With TDFC / TDCF Machine (After)

• 25–40 ducts per hour
• 1–2 operators
• Scrap reduced to 2–4%
• Monthly cost: $4,500 – $8,000

Monthly Savings

Average savings: $6,000 – $12,000 per month
High-volume shops: up to $12,000+ monthly profit increase

ROI (Return on Investment)

• Average machine price: ~$15,000
• Average monthly savings: ~$7,500
• Payback period: 2–6 months
• Small workshops: 6–10 months ROI

Why ROI is so fast

• Replaces 2–4 skilled workers
• Increases production speed up to 3–4x
• Reduces material waste
• Allows continuous production shifts

Applications

• HVAC duct manufacturing factories
• Ventilation workshops
• Industrial air systems
• Commercial construction projects

Conclusion

The TDFC / TDCF Lock & Cleats Roll-Former is not just a machine — it is a profit-generating HVAC production system that reduces labor cost, increases output, and delivers ROI in as little as 2–6 months.
