Downspout Elbow Machines for Gutter Systems: Popular Models, Prices, Comparison & ROI

A high-quality downspout elbow is an essential component of every seamless gutter system. It directs rainwater efficiently while ensuring a clean, professional installation. For gutter manufacturers, producing these fittings quickly and accurately is critical to maintaining productivity and profitability.

Modern downspout elbow machines allow manufacturers to produce consistent, high-quality elbows from aluminum, galvanized steel, and copper with minimal labor and material waste. Whether you operate a small fabrication shop or a large production facility, choosing the right machine can significantly improve manufacturing efficiency and return on investment.

What Is a Downspout Elbow Machine?

A downspout elbow machine is specialized equipment designed to manufacture round and rectangular elbows, offsets, and crimps used in residential and commercial gutter systems. Depending on the model, the machine can process seamless or welded downspouts using manual, electric, or fully automatic operation.

These machines are widely used by:

• Seamless gutter manufacturers
• Gutter installation companies
• Sheet metal fabrication shops
• Building material manufacturers
• Rainwater drainage system suppliers

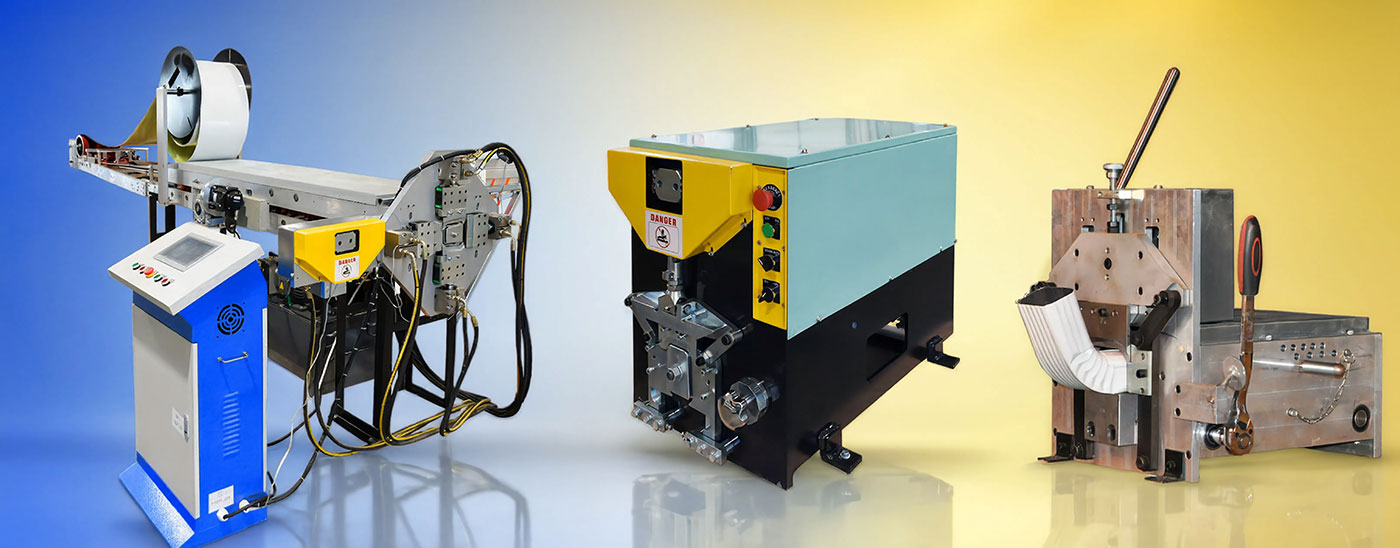

Popular Downspout Elbow Machine Models

Manual Downspout Elbow Machine (MEL)

The MEL Manual Downspout Elbow Machine is an affordable solution for contractors, mobile installers, and small fabrication shops. It is compact, portable, and ideal for producing round and rectangular elbows directly at the job site or in a workshop.

Best for:

• Mobile gutter installers
• Small fabrication shops
• Start-up businesses
• Low-volume production

Starting Price: From $6,000

Electrical Round & Rectangular Downspout Elbow Machine (LEL)

The LEL Electrical Downspout Elbow Machine is one of the most popular solutions for seamless gutter manufacturers in the USA. It combines electric operation, fast production, and excellent forming accuracy while producing both round and rectangular elbows.

Standard Sizes:

• Rectangular: 2×3", 3×4"
• Round: 2", 3", 4"

Starting Price: From $13,000

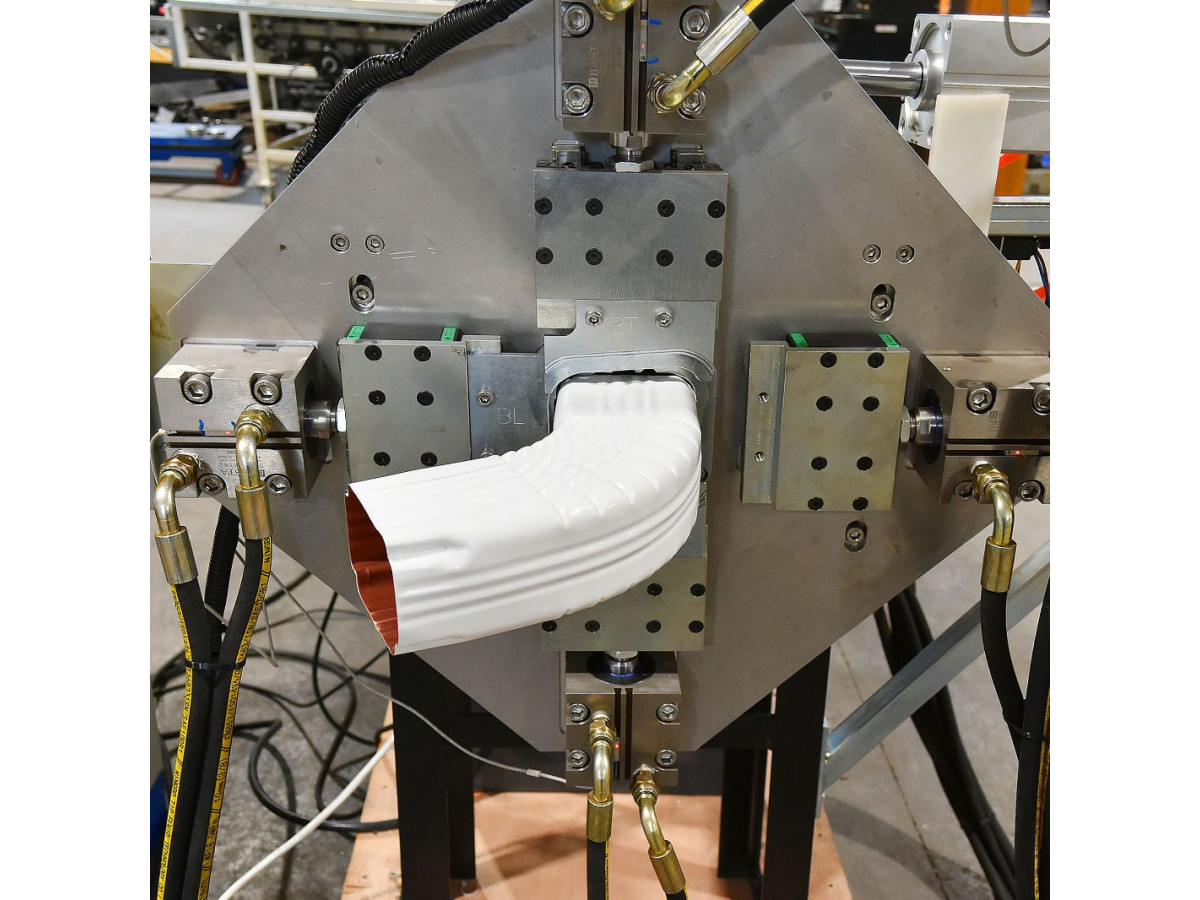

Liberty Automatic Downspout Elbow Machine

The Liberty Automatic Downspout Elbow Machine is designed for industrial production of seamless and welded downspout elbows. Fully automated operation provides maximum productivity, consistent quality, and minimal operator involvement.

Each machine is configured for one specific pipe size and profile.

Available Pipe Sizes:

• Rectangular: 2×3", 3×3", 3×4", 4×4", 4×5"
• Round: 3", 4"
• Custom Sizes Available

Starting Price: From $49,500

Downspout Elbow Machine Comparison

Feature	Manual (MEL)	Electric (LEL)	Automatic (Liberty)
Starting Price	From $6,000	From $13,000	From $49,500
Production Speed	2–6 pcs/min	2–6 pcs/min	Up to 60 ft/min
Operation	Manual	Electric	Fully Automatic
Best For	Contractors	Fabrication Shops	Industrial Manufacturers
Investment	Low	Medium	High
ROI Potential	Good	Very Good	Excellent

What Affects Downspout Elbow Machine Price?

The price of a downspout elbow machine depends on several factors, including:

• Automation level
• Production speed
• Pipe sizes
• Number of die sets
• Material compatibility
• Electrical configuration
• Custom tooling requirements

Although automatic machines require a higher initial investment, they generally provide the lowest manufacturing cost per finished elbow thanks to higher productivity and lower labor costs.

Material Compatibility

Professional downspout elbow machines process a wide range of materials:

• Aluminum
• Galvanized steel
• Copper
• Stainless steel (selected models)
• PPGI (pre-painted galvanized steel)

Standard Pipe Sizes

Rectangular

• 2×3"
• 3×3"
• 3×4"
• 4×4"
• 4×5"

Round

• 2"
• 3"
• 4"

Custom tooling is available for additional sizes.

Return on Investment (ROI)

Investing in a professional downspout elbow machine can dramatically increase manufacturing efficiency while reducing labor costs and production time.

Example ROI Calculation

A seamless gutter manufacturer currently produces approximately 120 elbows per day using a manual machine.

After upgrading to a Liberty Automatic Downspout Elbow Machine, production increases to approximately 500 elbows per day with the same operator.

Example:

• Additional production: 380 elbows/day
• Average gross profit per elbow: $8
• Additional gross profit per day: $3,040
• 22 working days per month
• Additional monthly gross profit: $66,880

With a machine starting at $49,500, many manufacturers can recover their investment in less than one year, depending on production volume, sales demand, operating costs, and local labor rates.

Additional Financial Benefits

• Increase production capacity
• Reduce labor costs
• Improve product consistency
• Reduce material waste
• Accept larger customer orders
• Increase profitability
• Fast return on investment
