Price on request

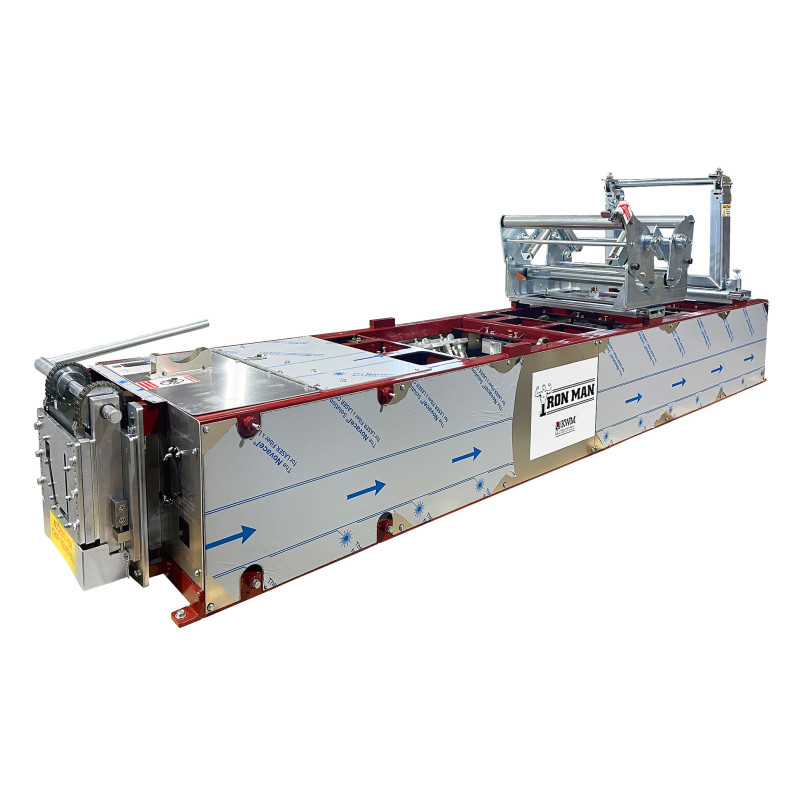

K-Style IronMan Gutter Machines 5”, 6”, 5-6 Combo

Product Code: K-Style Gutter Machine
In Stock
Price on request

+1 814 326 4121

WhatsApp

Has a variety of configurations for K style gutter: 5”, 6”, 5/6” combo

Polyurethane drive system.

 ROCK SOLID GUARANTEE:  3-YEARS Parts & Labor/Mechanical • 1-YEAR Parts & Labor/Electrical

Specifications

Power: 3/4 HP, 110 volt, single phase, 13.6 ampere, totally enclosed fan cooled (T.E.F.C.) motor

Dimensions: Length - 98 1/2" (250.2 cm), Height - 48" (122.0 cm), Width - 24" (61.0 cm)

Weight: Approximately 1,100 lbs. (499.0 kg)

Drive: Powered polyurethane drive rollers via chains and sprockets

Shear: Front pull guillotine

Speed: Approximately 35 feet per minute

Controls: Push button entry and exit end controls with "jog" feature

Recommended Materials
    Painted steel - 24 Maximum Gauge
    Galvalume - 24 Maximum Gauge
    Aluminized steel - 24 Maximum Gauge
    Ternecoat steel - 24 Maximum Gauge
    Aluminum - .032 Maximum Gauge
    Copper - 16 oz.-20 oz. 3/4 hard maximum gauge

Options
    Machine mount cradles
    Additional runout support stands
    CE Certified wiring
    Additional turnstiles
    Additional spools
    Alcoa style hook
    Roof flange 1"
    Trailer riser pad

VERSATILE. . . INNOVATIVE. . . DEPENDABLE. . . PROFITABLE

Polyurethane Drive Train


    Eliminates the need to load coil prior to transportation (less material waste)
    Rollform 24 gauge steel
    Eliminates slippage from cold weather and condensation

.002 Hard Chrome Plated Steel Forming Rollers

    Rollforms all recommended materials with minimal or no adjustment
    Free-floating forming rollers produce less pressure and allow for more product uniformity

Electrical and Control System

    Push button entry and exit end controls with safety wiring and "jog" feature
    3/4 HP, 110 volt, single phase motor, 13.6 ampere

Structural Steel Frame

Welded tubular frame

Modular Turnstile Upright System & Transfer Bars

Transfer bars (ease of coil loading)

NEW OPTIONS:

Hanger Mark

Save substantial time on the ground!

Hanger Mark is an add on accessory for any IronMan machine. It makes an indentation on the inside back of the gutter every 8" to indicate where to place your hangers. Patent Pending.


 Next Generation Smart Controller

Save substantial time on the ground! Input the length on the touchscreen and push ‘start’. Machine runs to length allowing the operatore to ‘pause' to install hangers, adjust run out stands, or adjust measurements if needed. Push ‘resume’ to finish the run. With the run complete, operator simply cuts the gutter.


Riser Pads    Riser pads to raise Mach II machines off of decking – available in 2 configurations: 6”-8” Riser Pads or 10”-12” Riser Pads.
