Portable Double Lock Standing Seam Roof Panel Roll Forming Machine – SS-150 Roofer

Portable Double Lock Standing Seam Roll Forming Machine (1.5" Mechanical Lock) – SS-150 Roofer

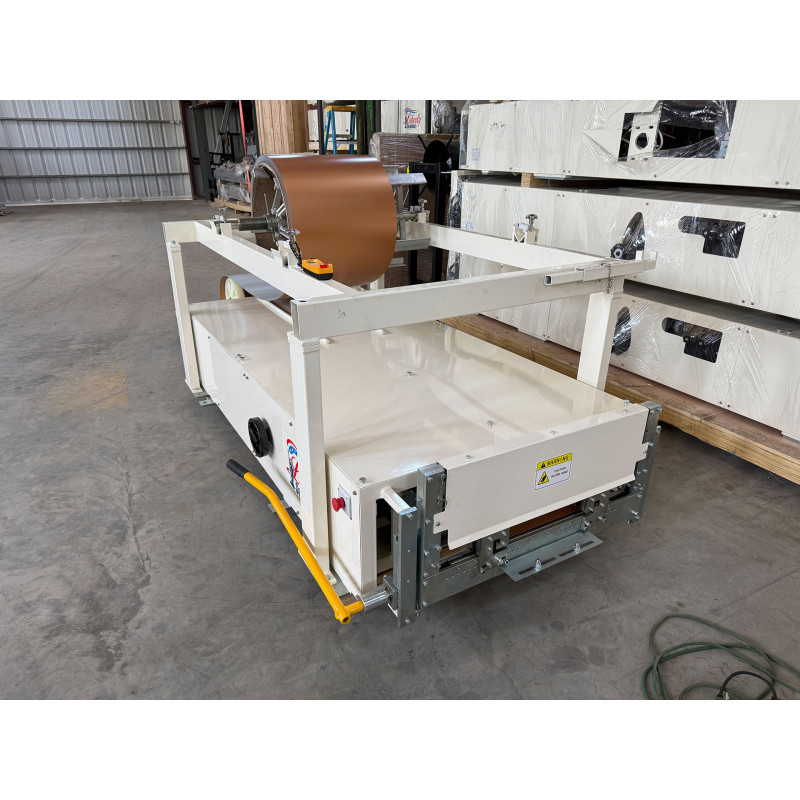

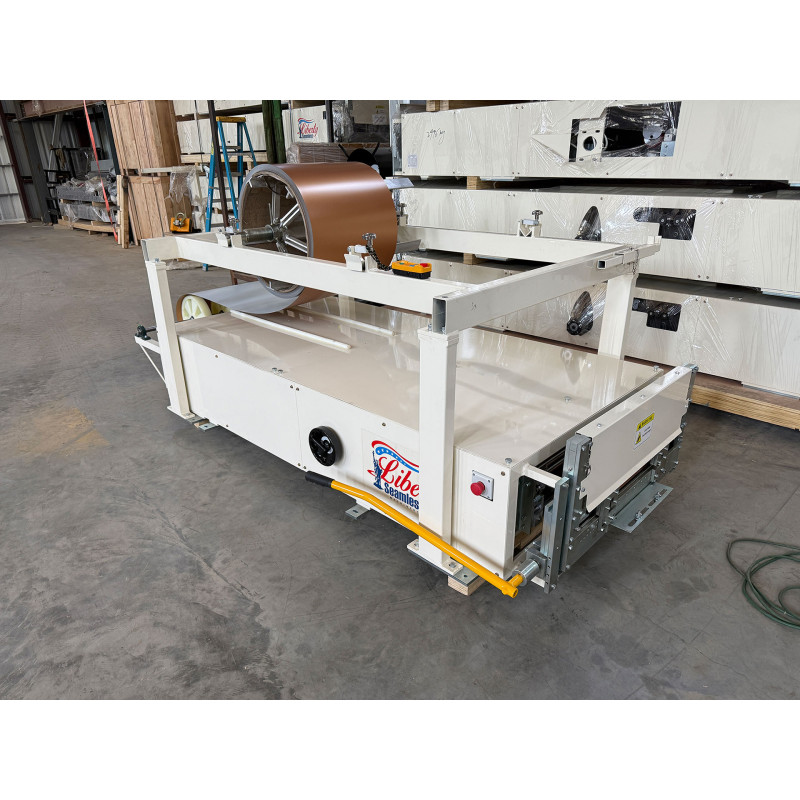

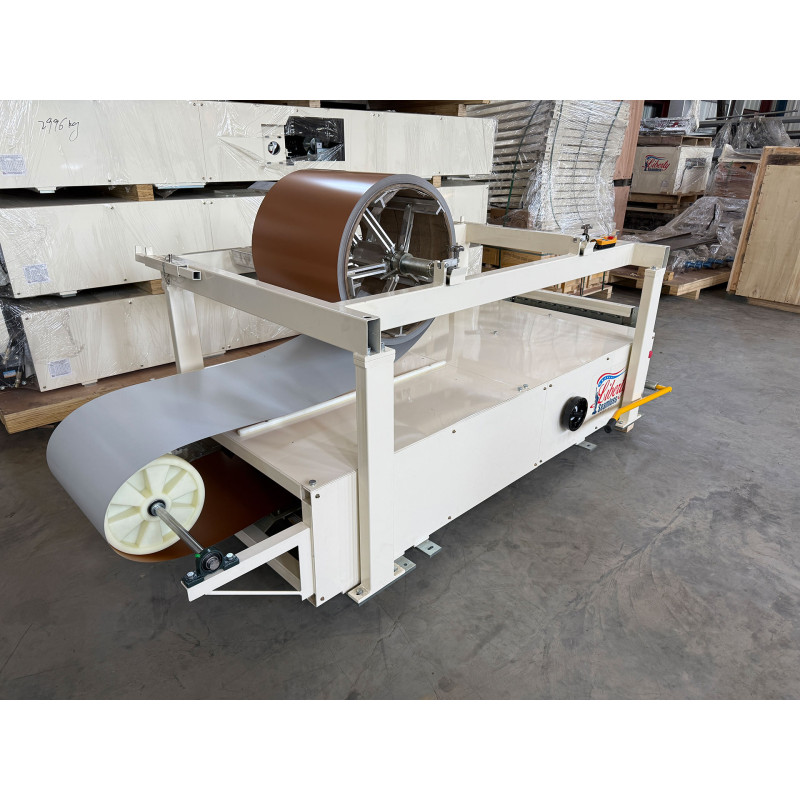

The SS-150 Roofer is a mobile roll forming system engineered for fast, accurate production of 1.5" mechanical double lock standing seam roof panels directly from coil stock. Designed for roofing contractors and metal fabrication professionals, it enables high-quality panel manufacturing on-site or in a workshop environment, eliminating the need for external panel suppliers and reducing logistics costs.

With its robust portable frame and precision roller system, the machine delivers consistent panel geometry and clean seam formation required for modern standing seam roofing systems. It is suitable for residential, commercial, and industrial applications where durability, weather resistance, and installation speed are critical.

Key Benefits

• Forms 1.5" (38 mm) mechanical double lock standing seam profiles
• Fully portable design for job-site or shop use
• High output efficiency up to 35 ft/min (10.7 m/min)
• Compatible with steel, aluminum, and copper coil materials
• Adjustable coil input range from 15" to 28"
• Wireless remote operation for improved handling and control
• Precision-engineered forming rollers for stable profile consistency
• Built-in measuring system for accurate panel length control
• Integrated manual shear for clean, on-demand cutting
• Clip relief system designed for concealed fastener installation
• Optional striation rollers for added panel strength and aesthetics

Supported Materials

Steel

• Galvanized / PPGI
• 24–26 gauge
• Grade 50–60

Aluminum

• 0.024" – 0.040"

Copper

• 16–10 oz (3/4 hard)

Technical Specifications

• Profile Type: 1.5" Mechanical Double Lock Standing Seam
• Maximum Production Speed: up to 35 ft/min
• Drive Motor: 1.5 HP AC Electric Motor
• Power Supply: 110V / 220V Single Phase
• Coil Width Range: 15" – 28"
• Machine Weight: approx. 1,600 lbs (650 kg)
• Machine Dimensions: 63" × 43" × 20"

Standard Configuration

• Urethane center drive roller system
• Hardened chrome steel forming rollers
• Wireless remote control system
• Manual exit shear for precise cutting
• Integrated length measuring system with limit switch
• Adjustable width control system
• Clip relief roller set
• Double bead / striation roller set (optional)
• Heavy-duty welded steel frame with powder coating

Optional Equipment (Upgrades)

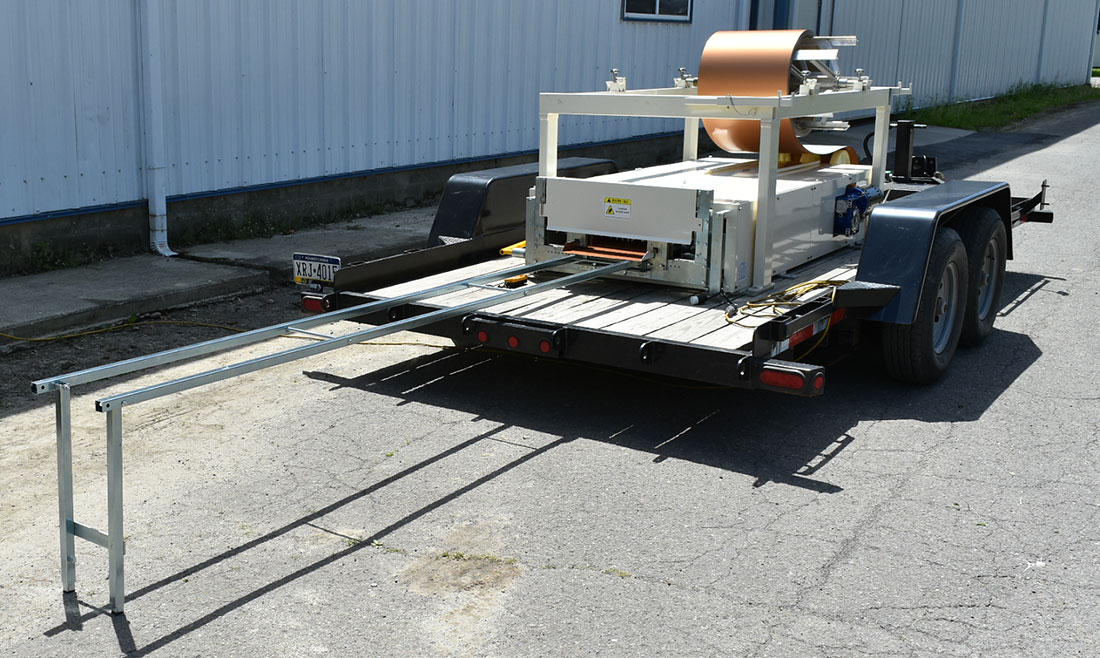

ROS-10 Run Out Table

Provides stable support for finished panels as they exit the machine. Adjustable height design improves handling safety and reduces risk of panel deformation.

EXA Expandable Arbor

Quick-loading expandable coil holder designed for 16"–20" ID coils with capacity up to 3000 lbs. Reduces downtime during coil changes.

FSDC Decoiler Stand

Heavy-duty decoiler system ensuring smooth and continuous coil feeding for stable production performance.

RER Reverse Rollers

Entry roller system designed for reverse coil feeding configurations and flexible workshop layouts.

WHSD Warehouse Stand

Mobile base platform that allows easy movement of the machine inside warehouse or production facilities.

D200 Decoiler

Single-stand decoiler rated for coils up to 1500 lbs. Provides stable and controlled material feeding for smaller production setups.

Applications

• Residential standing seam roofing systems
• Commercial metal roofing projects
• Industrial building envelopes
• On-site mobile panel production

The SS-150 Roofer combines portability, precision, and industrial-grade durability, giving contractors full control over standing seam panel production directly at the point of installation. It improves workflow efficiency, reduces material waste, and accelerates project completion times.
