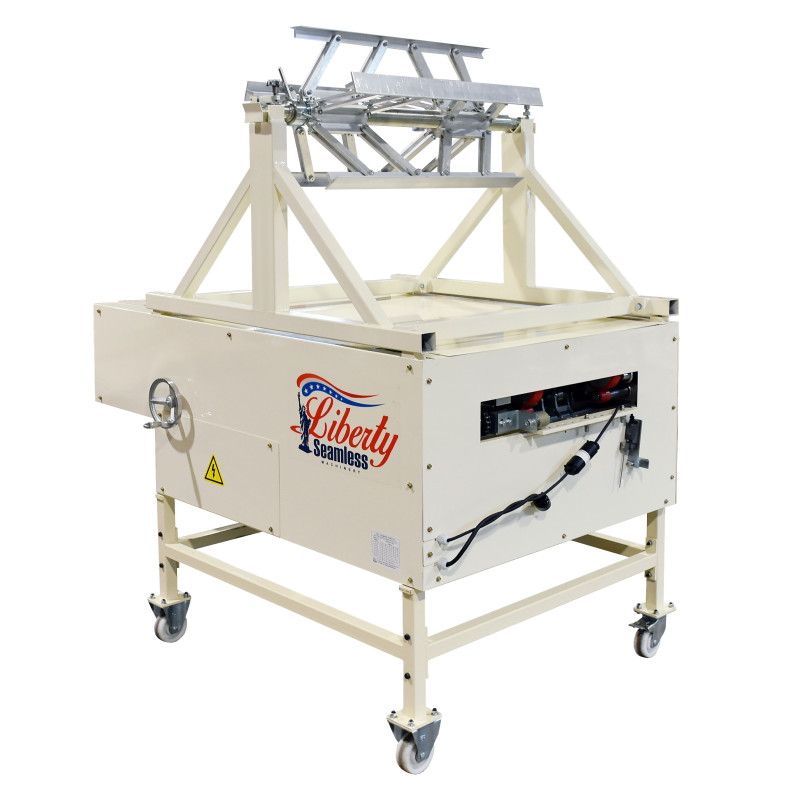

Liberty’s SS4E Standing Seam Roof Panel machine

Product Code: Liberty’s SS4E Standing Seam Roof Panel machine

In Stock

Price on request

+1 814 326 4121

Product description
Reviews0

Standing seam roof panel roll-forming machine SS4E-15 for 1" or 1.5" double standing seam profiles.

Introducing SS4E with autoshear and PLC touchscreen upgrades!

Customer runs 70’ panels right on the roof.

SPECIFICATIONS
• Length: 5' 4" (1.6m)
• Width: 3' 5" (1.1m)
• Height: 1' 9" (0.5m)
• Weight 1000 lbs. (455 kg)
• Speed: 30 ft/min (9m/min) Approx.
• Drive: Polyurethane and lower steel forming Rollers
• Shear: Manually Powered, Entrance end slitter
• Coil Width: 15” to 28" (380mm to 711mm)
• Materials Formed
• Steel 30 ga. to 24 ga. (.3mm to .6mm)
• (painted, galvanized, aluminized)
• Aluminum .019" to .032" (.5mm to 08mm)
• Copper 16 oz. to 20 oz. 3/4 Hard
• (.5mm to .7mm)
STANDARD FEATURES
• Polyurethane and Bottom Forming Drive Rollers
• Hard Chrome Steel Forming Roller System
• Easy to operate Entrance End Manual slitter cutoff
• Portable Dongle for Ease of Operation
• Width Adjusted with simple crank
• Push Button Controls on cordless dongle
• Length Control Limit Switch
• Clip Relief Roller Set
• Two Sets of Bead Rollers
• 1.5 HP Electric Motor
• Welded Tubular Steel Frame
• 1 Year Limited Parts Warranty

• Standard delivery terms: 6 weeks after 30% deposit (varies according to production schedule)

OPTIONS

ROS-10 Run Out Table

Table attaches to shear and is used to support panel as it exits the machine. Adjustable leg allows variation in height from 25” to 43”. Available in connectable 10 ft. sections.

EXA Expandable Arbor

Used for holding coil. This arbor expands to the inside diameter of the coil for faster, easier loading. Can accommodate coils with 16” to 20” ID. Capacity is 3,000 lbs. when used remotely with Free Standing De-Coiler.

FSDC Free Standing De-Coiler stand

A Remote stand used at the entry end of the machine to hold one Expandable Arbor with coil or one De-Coiler Reel with coil. (Picture shows optional EXA) This can also be mounted on machine for overhead reel holder.

RER Reverse Entrance Rollers

Bolt on entrance roller needed when FSDC above is mounted on the SS4E to reverse the coil at entrance end.

WHSD Warehouse Stand with Rollers

Easy to mount SS4E for warehouse use with rollers for mobility.

D200 Console Single Stand De-Coiler

A Remote stand used at the entry end of the machine to hold one Expandable Arbor with coil or one De-Coiler Reel with coil. Max capacity 1,500 lbs. No need to take of the reel to set on a coil.

HS1 Hand Seamer for Mechanical Seam 1” or 1.5”

Hand held device used to single-lock mechanically seamed panels.

EXTRA ROLLER SYSTEMS: Forming rollers used to form various panel profiles.

SS100 1” Mechanical Seam

SS150 1.5” Mechanical Seam
