What kind of machine it is

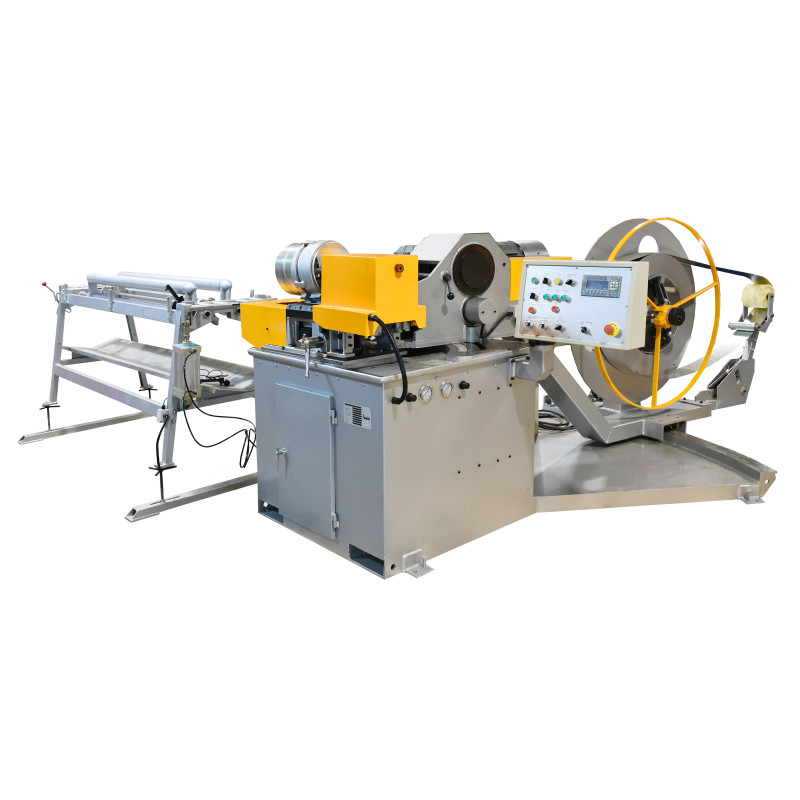

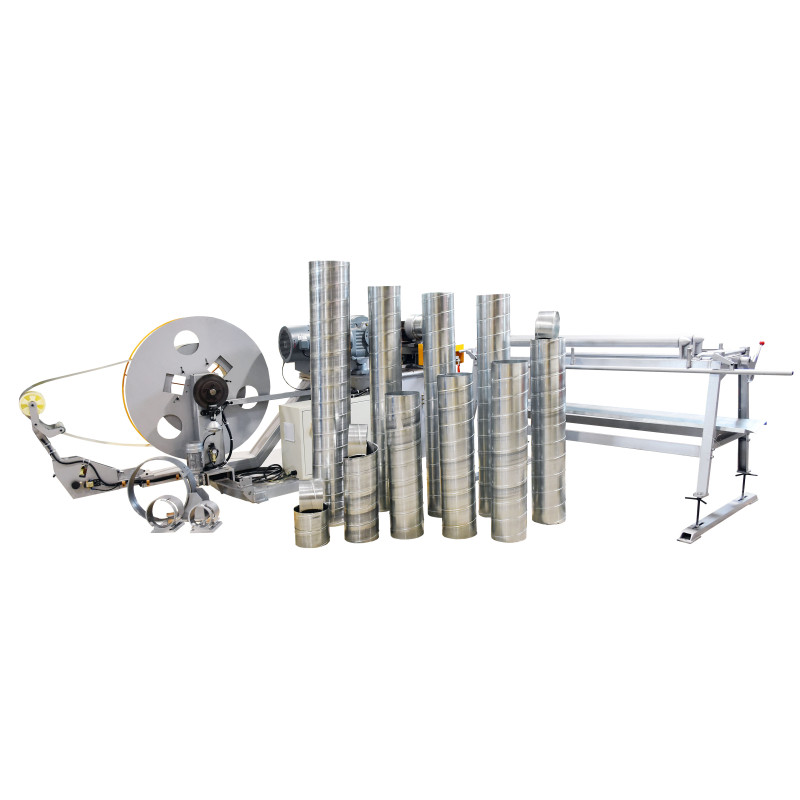

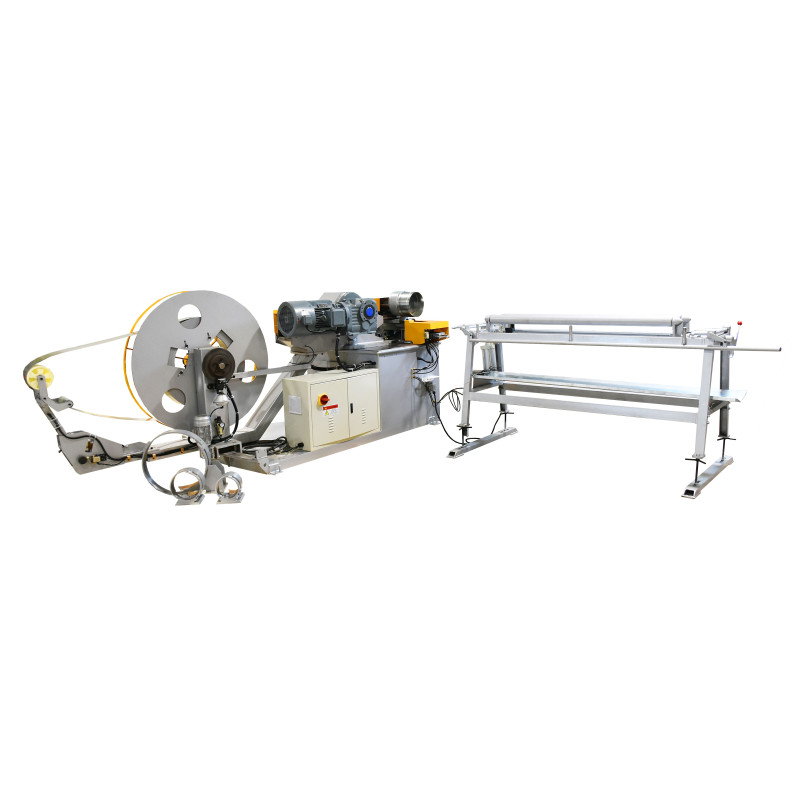

This is a spiral tube former machine that produces round air ducts from a continuous metal strip.
The machine is designed to manufacture:

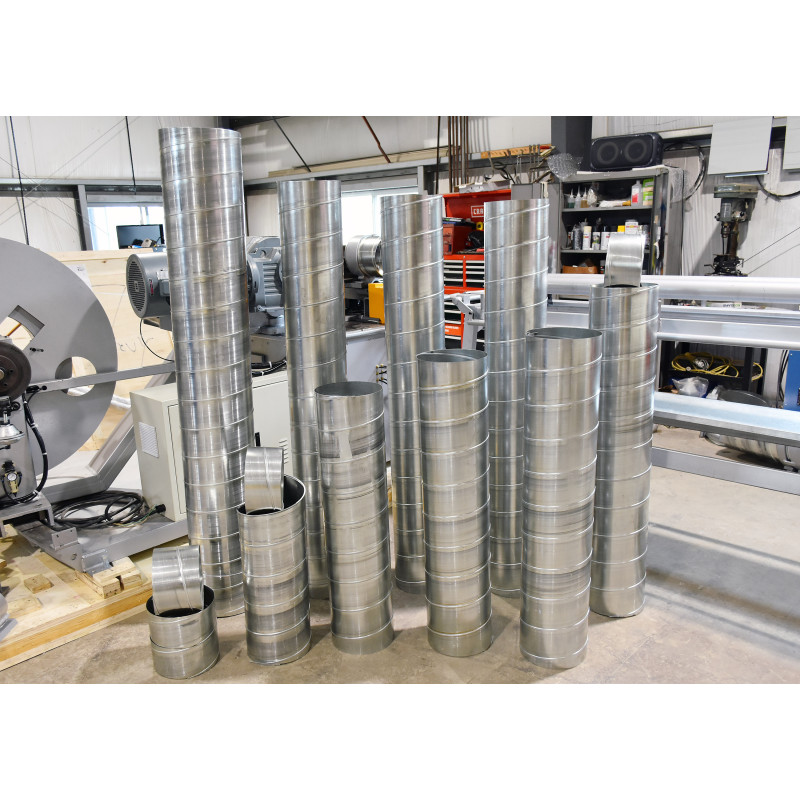

- Round ventilation pipes
- Spiral air ducts (spiral ducts)
- HVAC ventilation channels for air distribution systems
Where it is used
- HVAC ventilation systems
- Industrial air distribution systems
- Shopping malls and commercial buildings
- Warehouses and logistics centers
- Factories and industrial plants
- Air conditioning and climate control systems
Technical specifications
- Diameter range: 3" to 62"
- Material thickness: 0.4–1.2 mm (26–18 gauge steel), aluminum .016–.040
- Feeding speed: up to 150 fpm (60 m/min)
- Main motor power: 11 kW
- Machine weight: approx. 6000 lbs
- Cutting system: disc blade automatic cut-off
- Forming system: fixed spiral forming molds
- Operation mode: continuous automated production
Standard equipment set

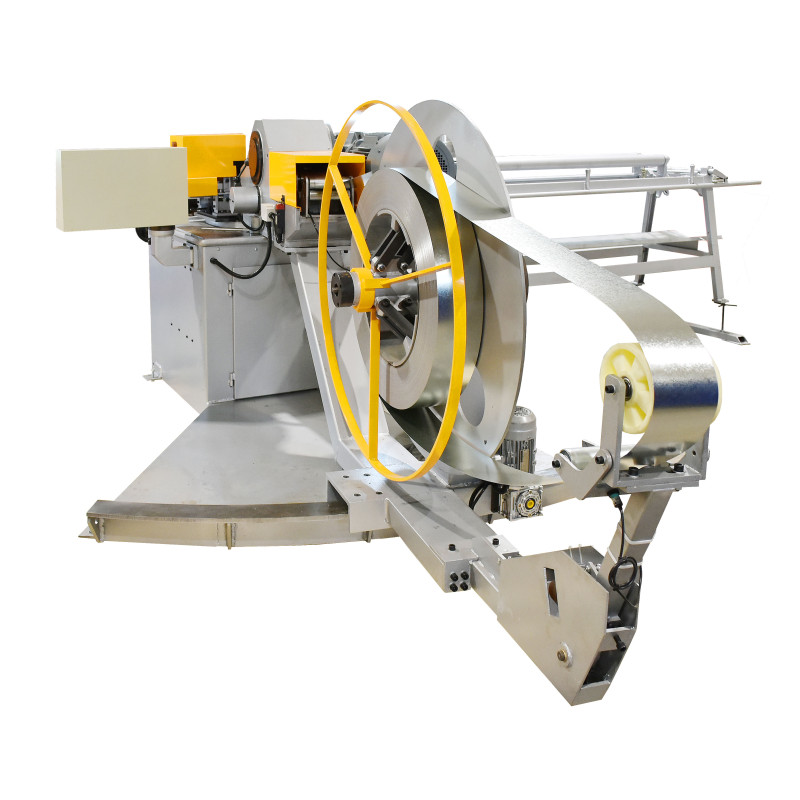

- Expandable coil holder with braking system

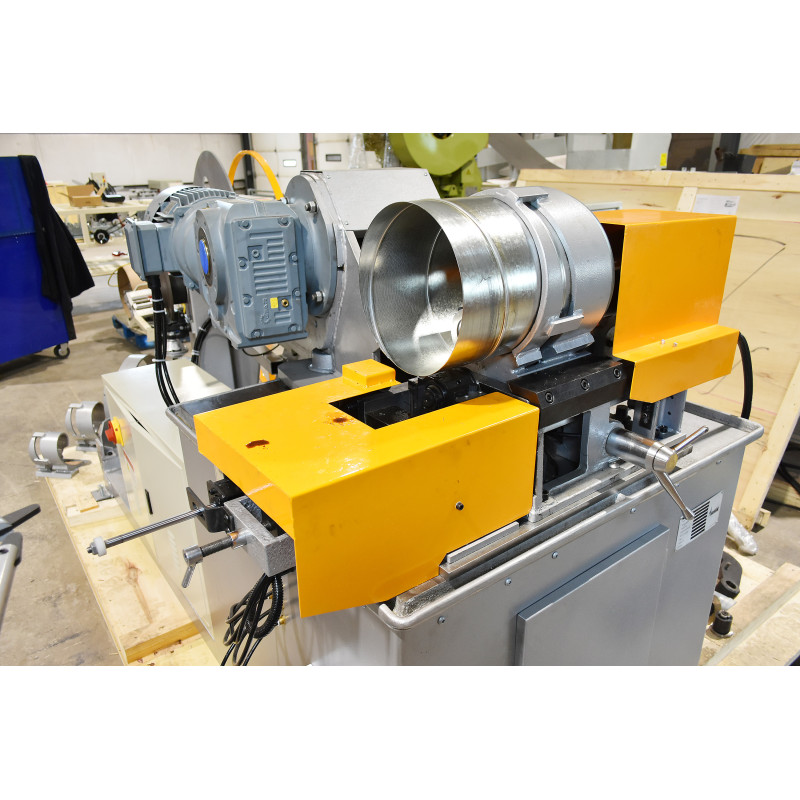

- Spiral tube forming unit with 3 sets of rollers
- Integrated forming and cutting modules
- Automatic lubrication system for continuous operation

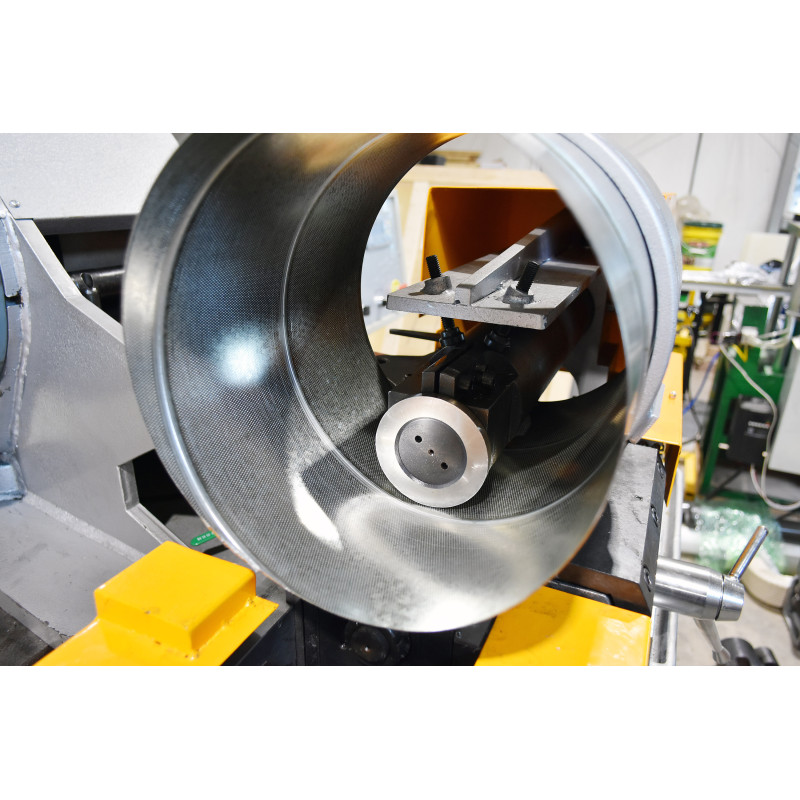

- Disc blade cutting unit for precise length control

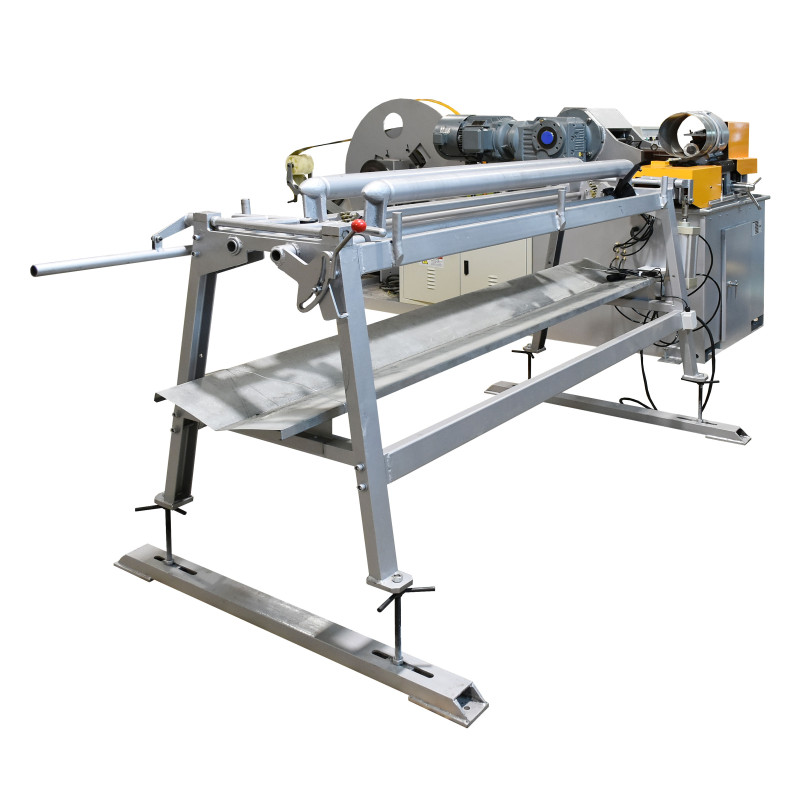

- Run-out stacking table with pneumatic drop-off system
Key advantages
- High production speed and continuous operation
- Precise diameter control with stable geometry
- Strong and airtight spiral seam connection
- Clean and burr-free cutting system
- Reduced labor costs due to automation
- Consistent quality of finished ducts
- Suitable for large-scale industrial HVAC production
- Improved surface finish and professional appearance
The TF1602 spiral tube forming machine is a high-performance industrial solution for producing round HVAC ducts directly from metal coil. It ensures fast, stable, and precise manufacturing of spiral ventilation pipes used in modern air distribution systems.
