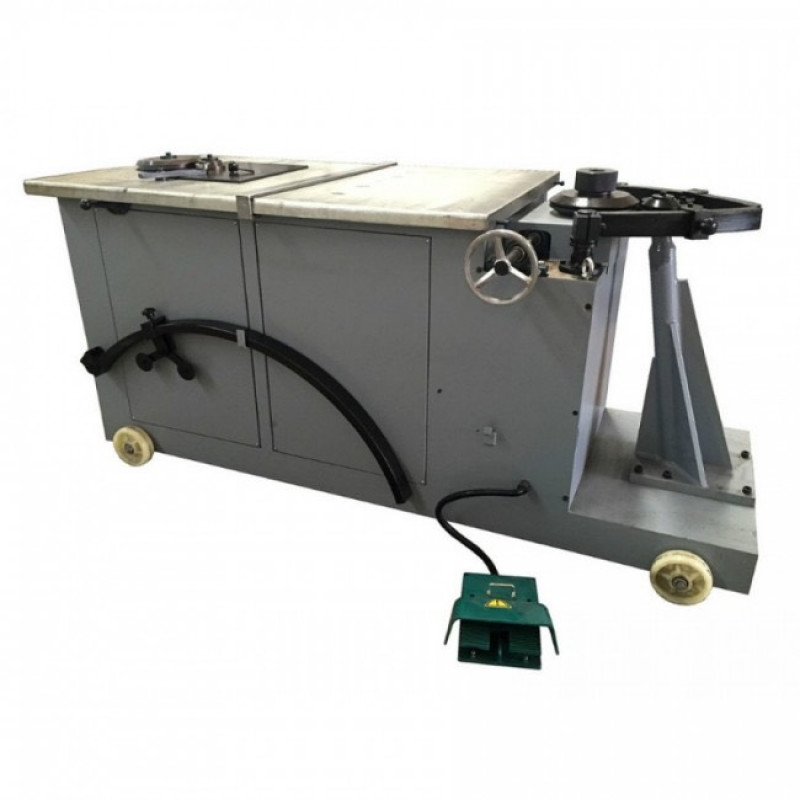

Gorelocker SGWT-1250 designed to produce round duct elbow, fabricated fittings and fittings production. This machine is a cost-effective solution for the production of welded elbows, reducers, end caps and off-sets for HVAC, downspout and exhausting systems. Low power consumption, easy operating and adjustment provides you the power to fabricate hundred of fittings instore per day.
It's a two sided machine with two separate working sites. One side is a Flanger/Swager to flange one side of a cylindrical gore. On the same side by switching mode crank - upper table goes dawn and operator is swaging the connecting side of the next gore. On the second side (opposite end) of the machine (lockseamer side), at the same time another operator finalizes the operation by closing the seam into a standing rib.
This way two operations are conducted simultaneously, increasing final productivity. Standing rib diameters from 5 to 50 inches (125 - 1250mm) of 28 to 16.5 gauge steel (0,5-1,5). Final seals eliminates the need for painting, coating or sealant. Gorelocker SGW 1200x1.5 uses minimal power - only 2.2kWt for each side (max 4.4kWt while two operators working simultaneously). Required floor space is only 8.5 x 3 feet. This model doesn’t have hydraulic station and functions without shavings, heat, noise, water or spark production. Standard warranty one year.
Electrical equipment (two current invertors) to adjust speed 0 – 200% of standard. More convenient for operation with smaller (reduced speed) and bigger (increased speed) elbow diameters.
