Automatic Downspout / Elbow Machine

Product Code: DSEL
Reviews: (0)
In Stock
Price on request
Ex Tax: $ 0

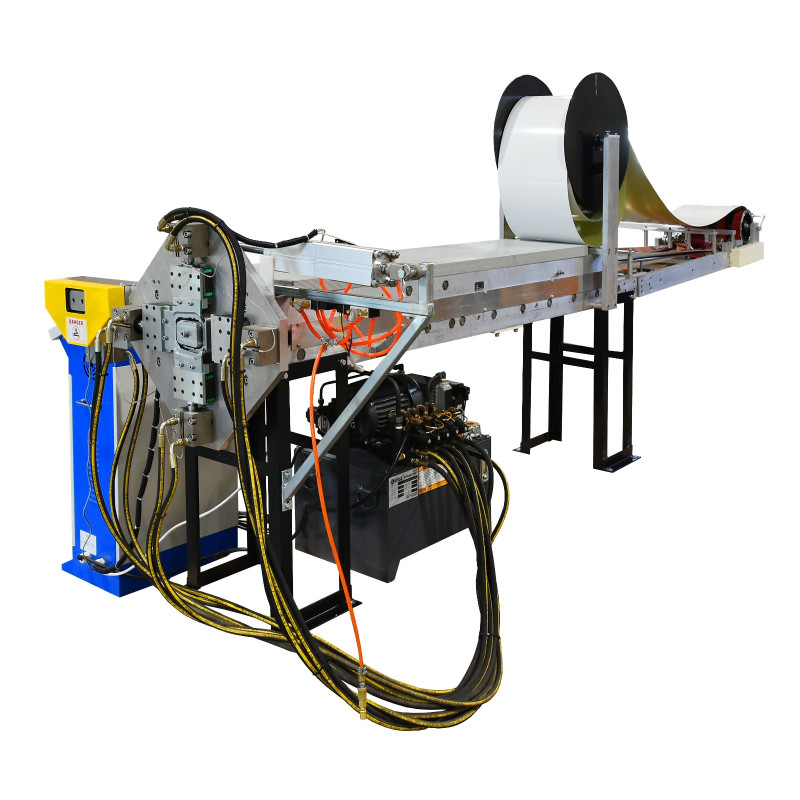

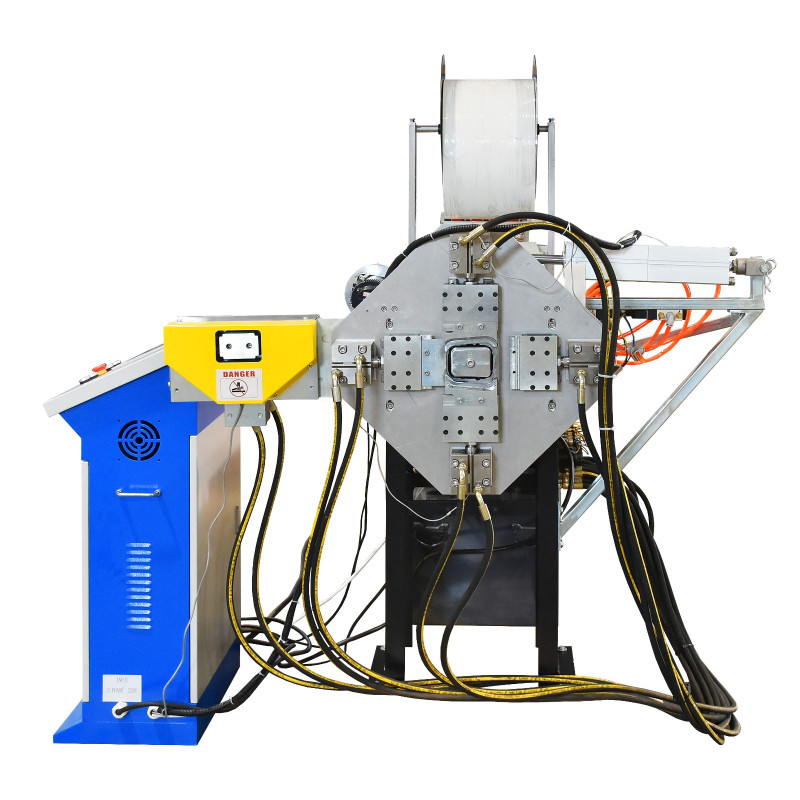

Liberty Downspout & Elbow Machine

downspout-machine-price

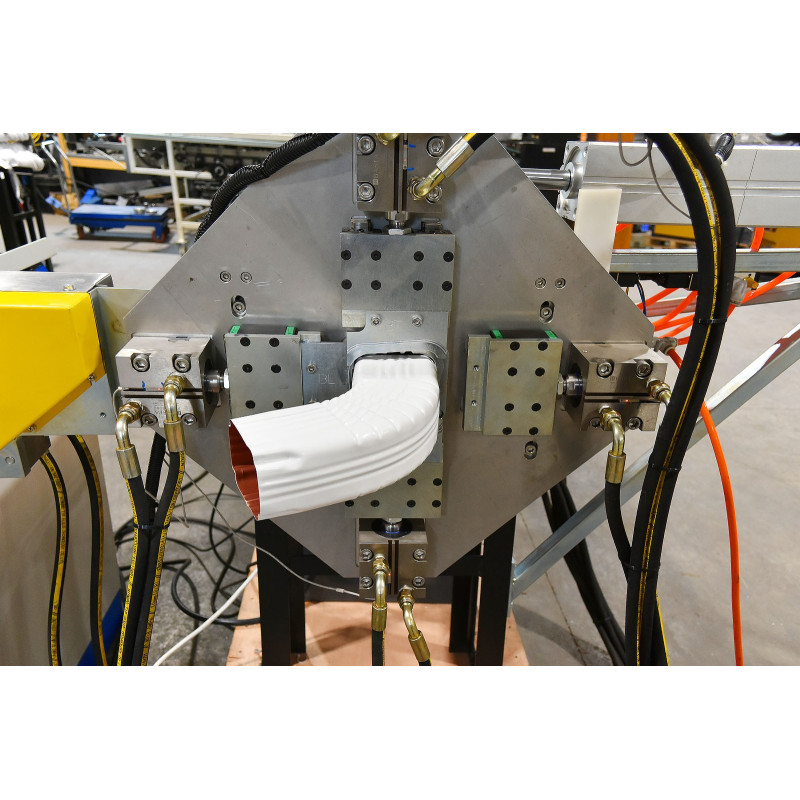

Liberty has developed advanced downspout machines capable of fully automated production of both downspouts and elbows. The system can produce standard downspouts or form elbows using hydraulic end crimpers and an automatic shear.

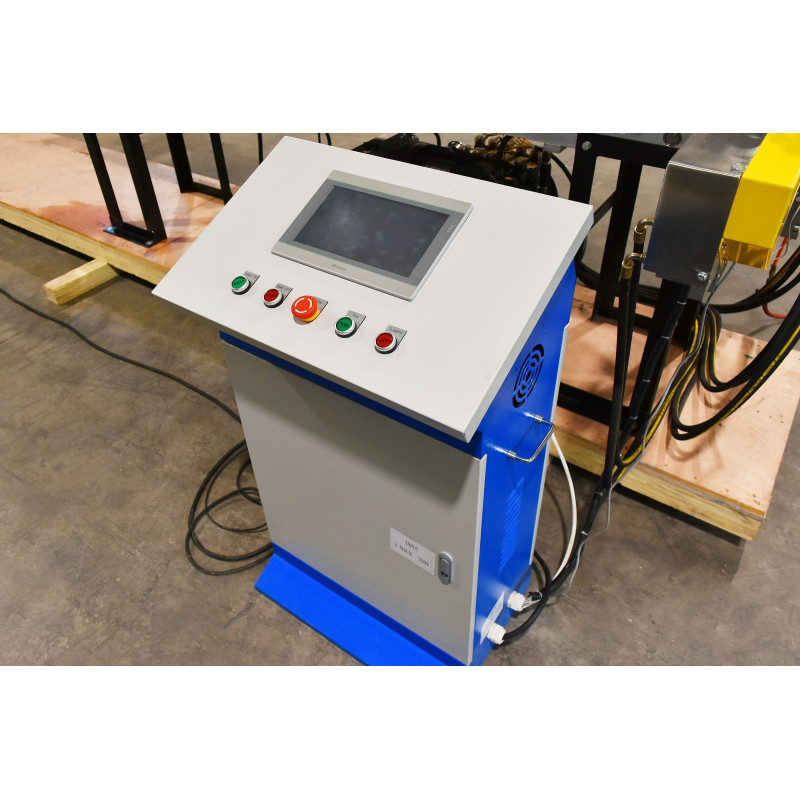

The machine is fully PLC-controlled, ensuring high accuracy and consistent production. It significantly reduces labor requirements for manufacturers producing downspouts or A/B elbows.

Specifications

Pipe Size:Custom (per customer request)
Speed:25–45 ft/min (8–13 m/min)
Material Thickness:.015” – .024” (0.4 – 0.6 mm)
Decoiler:One overhead decoiler with spool included
Dimensions:17 ft × 3 ft × 3.5 ft (excluding reel and PLC cabinet)

Included in Line

  • Decoiler
  • Guiding mechanism
  • PLC system (length, batch, and elbow bend control)
  • Roll former
  • Hydraulic shear
  • Runout table
