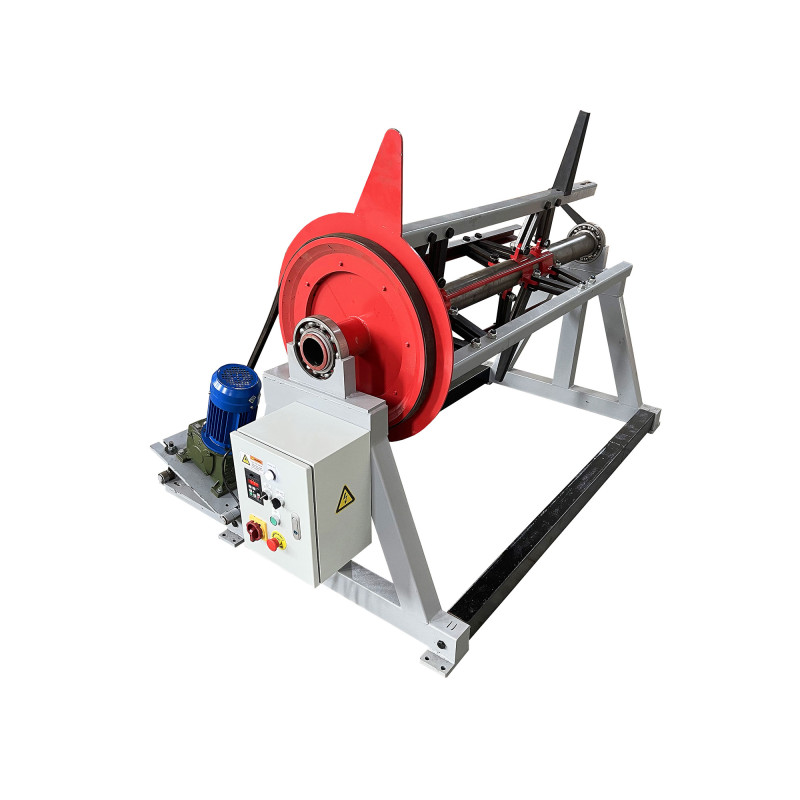

Motorized Sheet Metal Decoiler DC60M

The Motorized Sheet Metal Decoiler Machine DC60M is a compact and efficient solution for controlled unwinding of metal coils, ensuring stable feeding into roll forming, cutting, and stamping lines.

How It Works:

• The metal coil is mounted securely onto the decoiler shaft
• The inner diameter of the coil is fixed within the 19–24 inch range
• The motor starts smooth rotation of the coil for controlled unwinding
• The VFD controller adjusts speed according to production line requirements
• Soft start and stop function prevents material shock and deformation
• Continuous feeding is synchronized with downstream equipment

Key Features:

• Motorized system for stable and automated coil unwinding
• VFD speed control for precise production adjustment
• Soft start and stop function for improved material protection
• Compatible with single or 3-phase power supply
• Compact industrial design suitable for small and medium production lines
• High efficiency with reduced operator workload

Specifications:

• Maximum coil width: 60 inches (1.5 m / 5 feet)
• Inside coil diameter range: 19–24 inches
• Motor power: 2 HP
• Voltage: 220V, 3-phase
• Control system: VFD (Variable Frequency Drive)
• Functionality: speed adjustment, soft start/stop

Where It Is Used:

• Roll forming production lines
• Metal sheet fabrication workshops
• Cutting and slitting lines
• Stamping and forming operations
• General industrial metal processing

Advantages:

• Ensures smooth and consistent material feeding
• Reduces stress on downstream machines
• Improves production accuracy and efficiency
• Minimizes manual handling and labor costs
• Reliable and cost-effective industrial solution

At Liberty Seamless Machinery, we are committed to delivering durable and efficient coil handling systems. The DC60M decoiler is engineered to improve workflow stability, enhance production performance, and provide long-term value in industrial environments.
