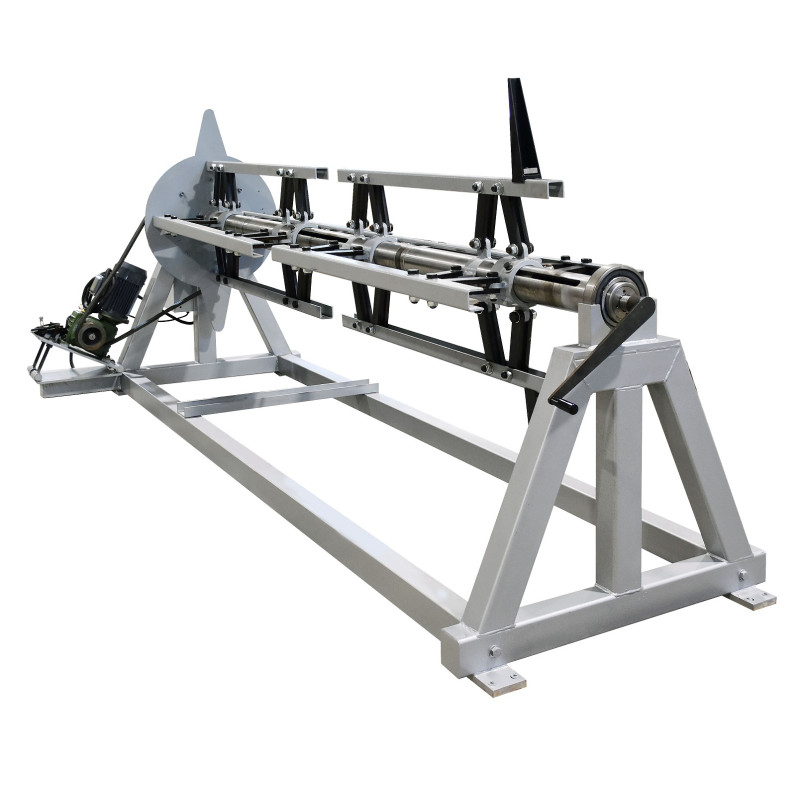

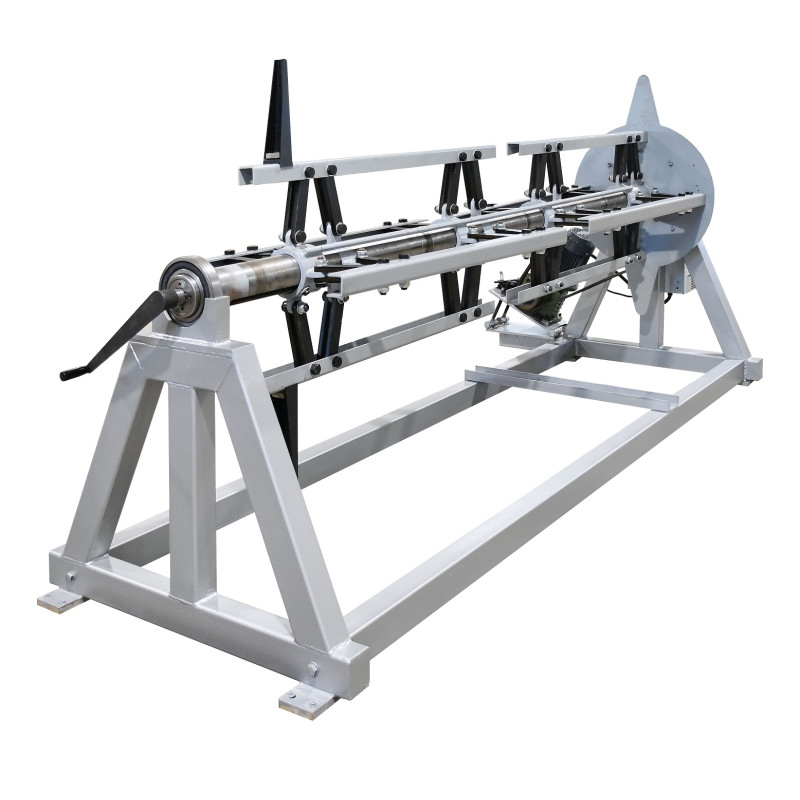

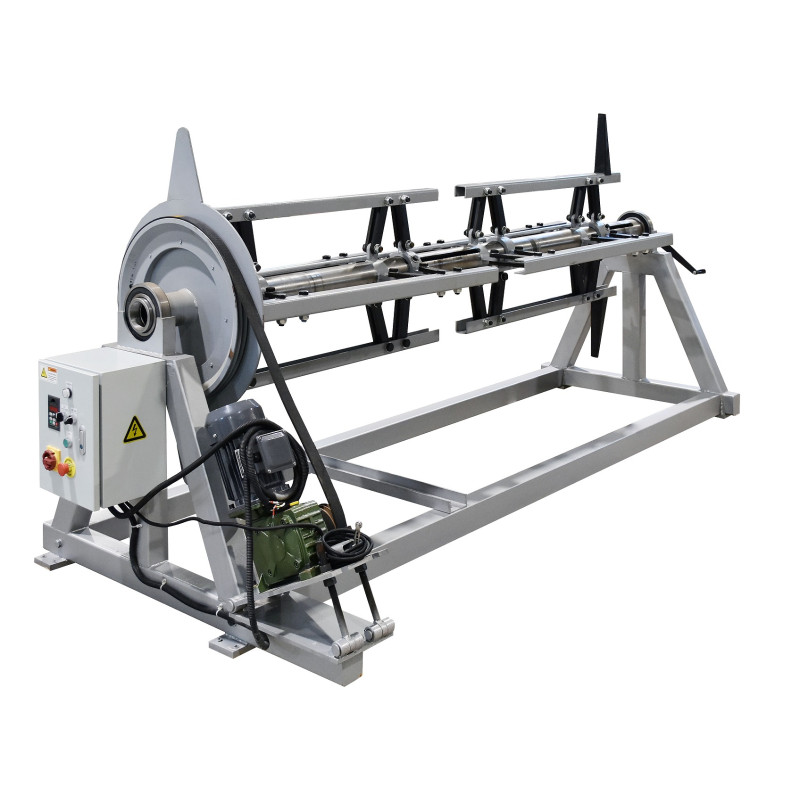

Motorized Decoiler Machine DC115M with VFD controls

The Motorized Decoiler DC115M is a heavy-duty solution designed to handle extra-wide and high-capacity coils with precision and reliability across demanding production environments.

Key Features:

• Designed for extra-wide coils up to 115 inches
• Heavy-duty steel construction for long-term industrial use

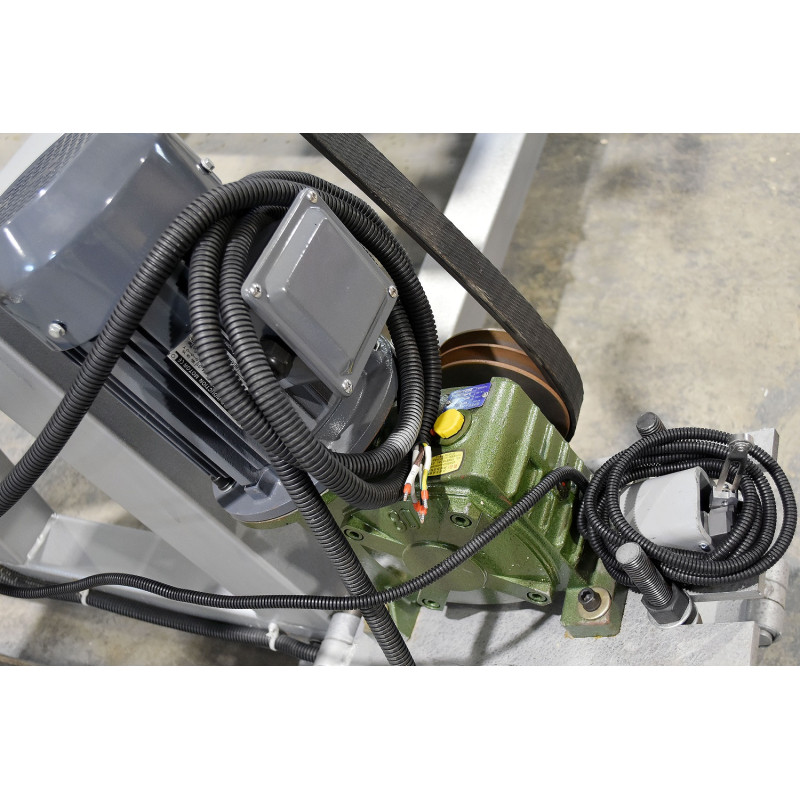

• Motorized system reduces manual labor and increases efficiency

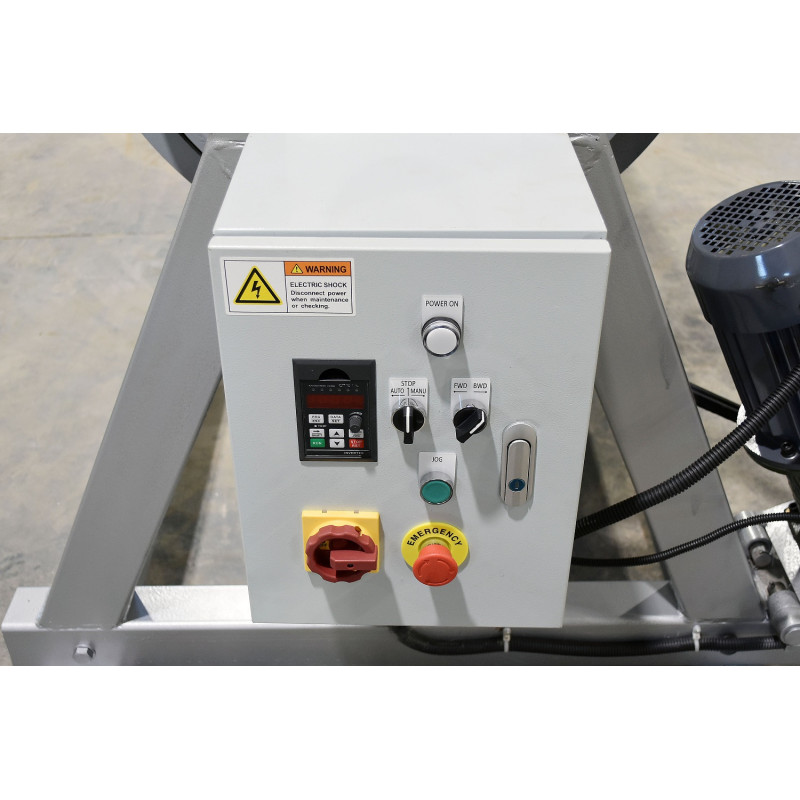

• Variable speed control for precise material feeding

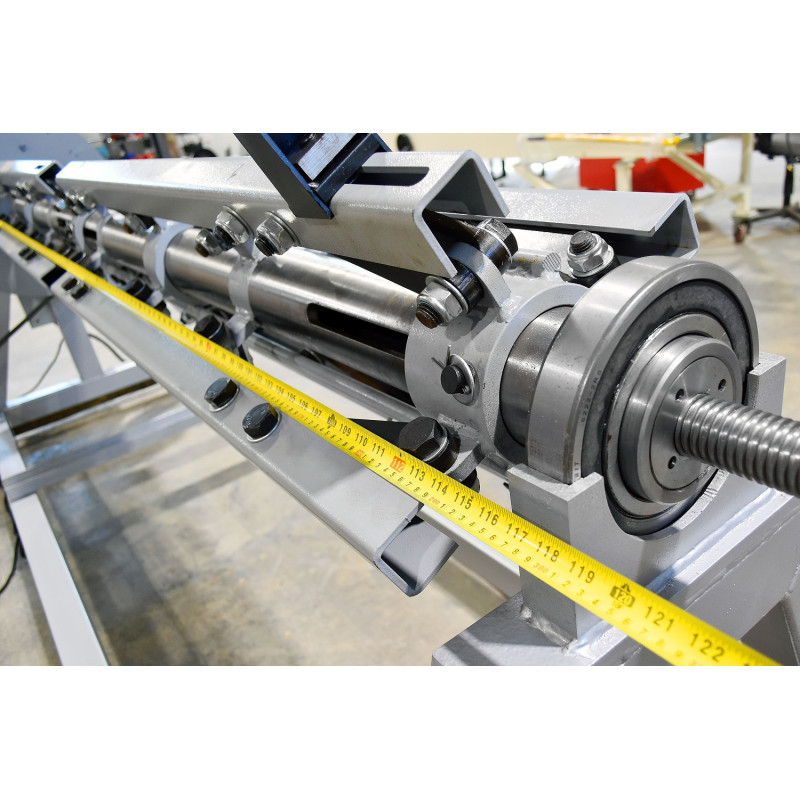

• Self-centering coil holder for fast and secure setup
• Reverse rotation capability for operational flexibility

Specifications:

• Maximum coil weight: 10,000 lbs (4,600 kg)
• Maximum coil width: 115 inches (2.9 m)
• Coil inner diameter range: 14" – 24.5"
• Machine dimensions (L/W/H): 132" / 45" / 49"
• Power supply: 220V, 3-phase
• Motor power: 2 HP
• Machine weight: 1200 lbs

Where It Is Used:

• Wide sheet metal processing lines
• Roll forming systems for large panels
• Plastic and film production lines
• Paper and packaging manufacturing
• Industrial applications requiring wide coil feeding

Advantages:

• Handles extra-wide and heavy coils with ease
• Improves workflow efficiency and reduces downtime
• Ensures consistent and controlled material feeding
• Minimizes wear on downstream machinery
• Flexible operation with speed control and reverse function
• Cost-effective solution compared to complex automated systems

At Liberty Seamless Machinery, we focus on delivering practical and reliable solutions for modern manufacturing. The DC115M motorized decoiler machine is built to optimize productivity, ensure safe operation, and provide long-term value for high-capacity production lines.
