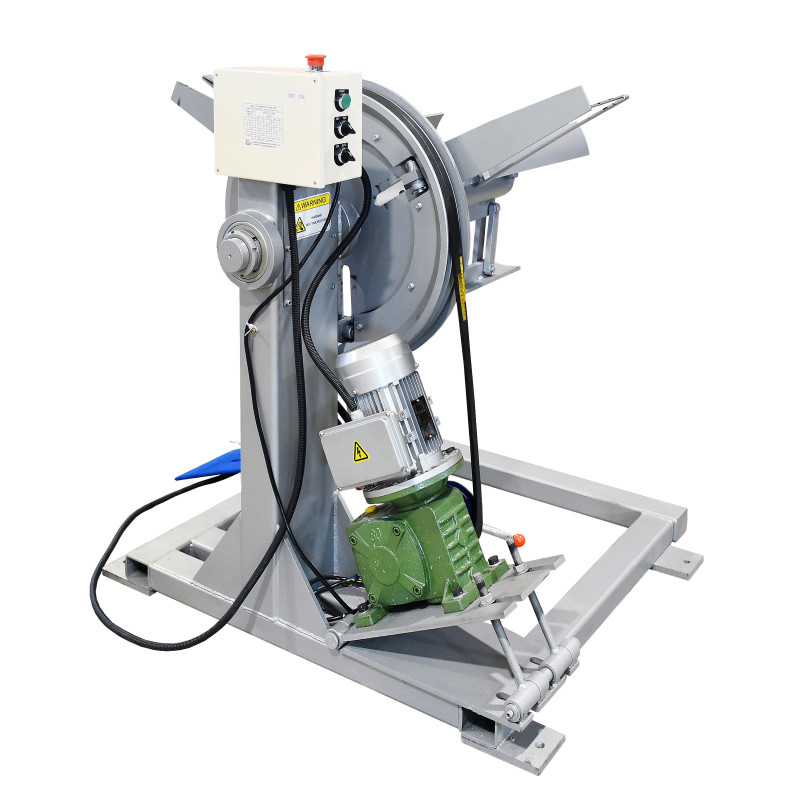

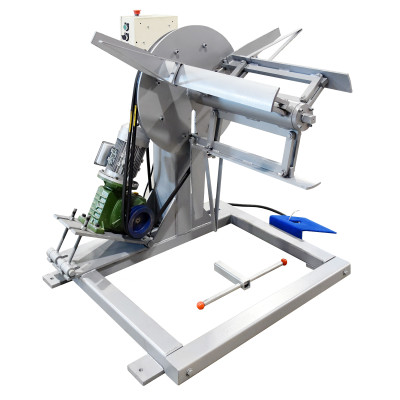

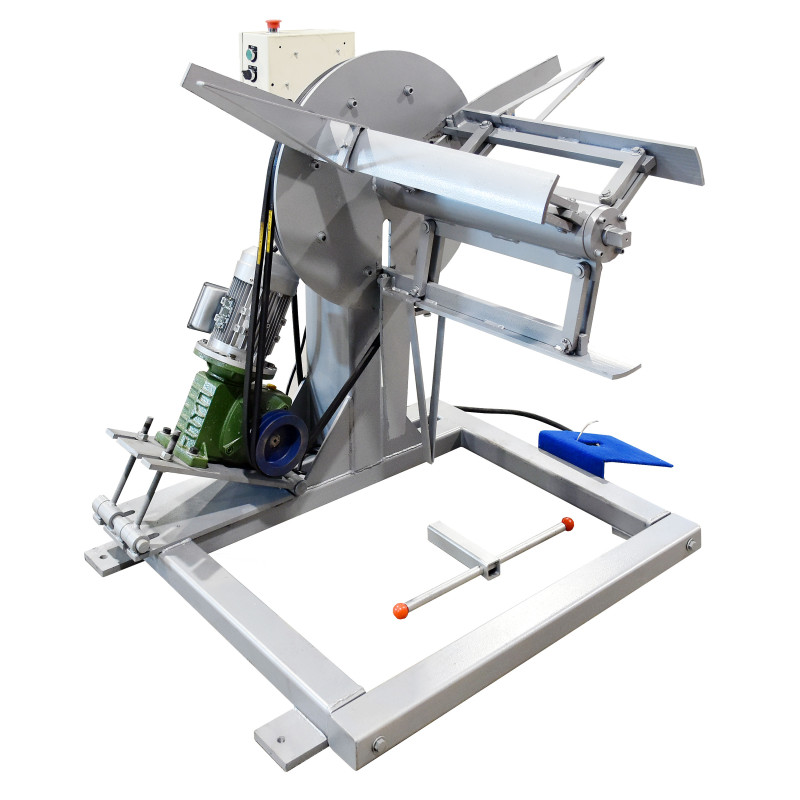

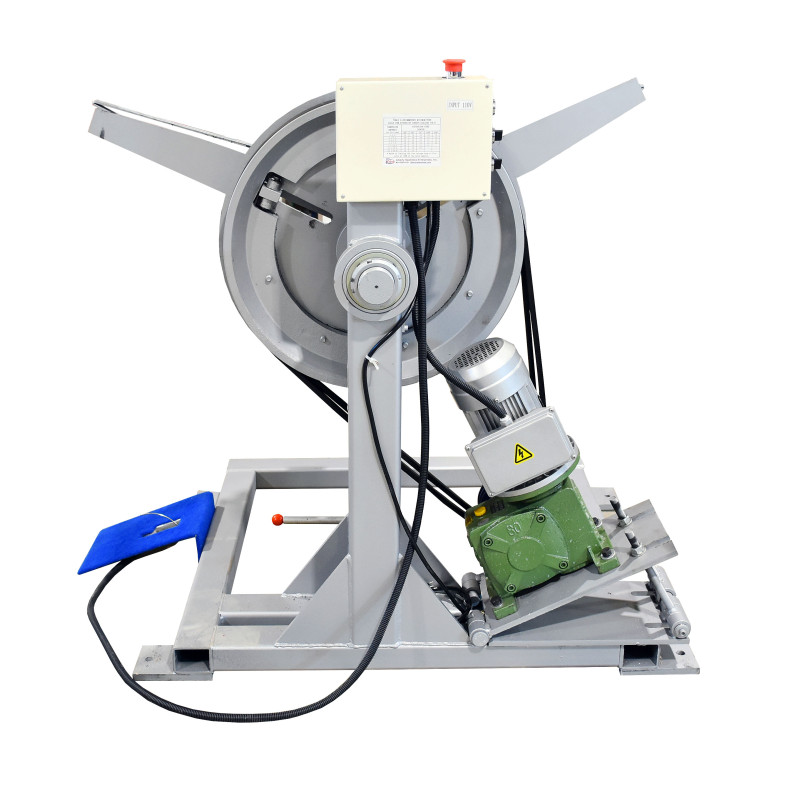

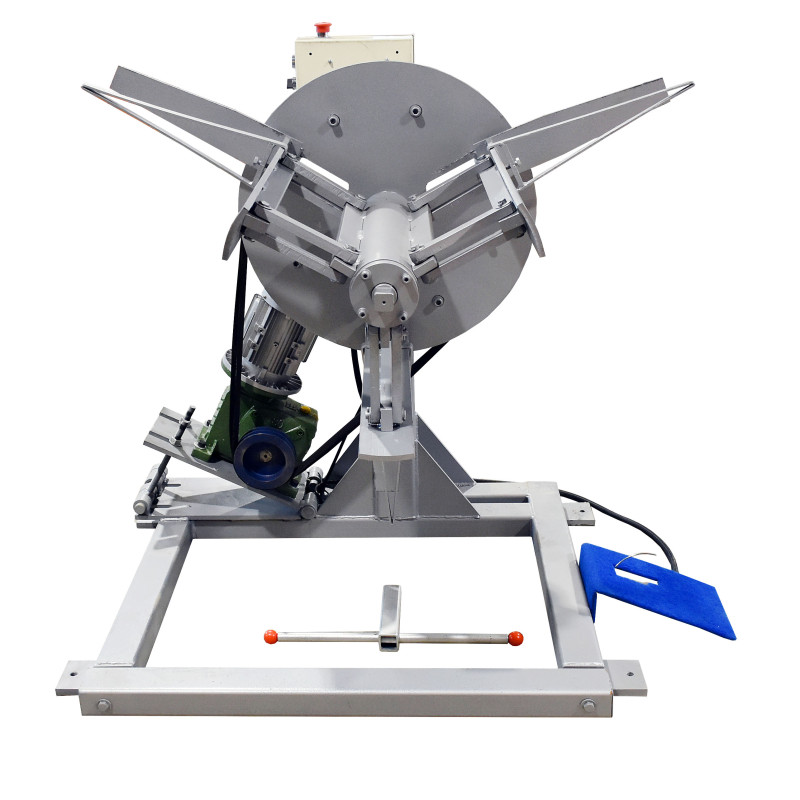

Motorized decoiler D200

At Liberty Seamless Machinery, we design industrial equipment that improves efficiency, reliability, and precision in modern production lines. One of our key solutions is the Motorized Decoiler D200 — a compact yet powerful coil handling machine engineered for smooth and controlled material unwinding.

How to Use the Motorized Decoiler D200:

• Install the coil onto the self-centering mandrel
• Adjust the coil holder to ensure secure positioning
• Connect the decoiler to the production line equipment
• Power on the machine and check motor and control system
• Feed the leading edge of the material into downstream equipment
• Allow the automatic start/stop system to control unwinding
• Monitor operation to ensure smooth and consistent material flow

Specifications:

• Maximum coil weight: 2000 lbs
• Maximum coil width: up to 26 inches
• Coil inner diameter range: 12–20 inches
• Drive system: electric motor with gearbox and belt transmission
• Control system: automatic start/stop via limit switch
• Material compatibility: metal, plastic, paper, and similar materials

Designed with performance and practicality in mind, the D200 ensures stable and reliable operation in demanding industrial environments. Its motorized system provides consistent unwinding speed, while the automated controls reduce manual intervention and improve workflow efficiency.

Advantages:

• Cost-effective alternative to fully automated systems
• Easy installation and operation
• Low maintenance requirements
• Versatile use across different materials and industries
• Improved safety and reduced manual handling

The Motorized Decoiler D200 is widely used in metal processing, fabrication workshops, roll forming lines, stamping operations, and other manufacturing environments where continuous material feeding is required.

At Liberty Seamless Machinery, we are committed to providing reliable and practical industrial solutions. The D200 reflects our dedication to quality engineering, operational efficiency, and meeting the real needs of modern manufacturers.
