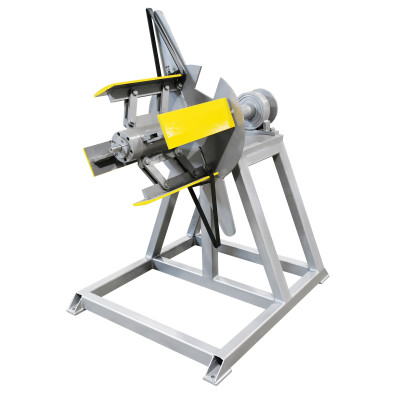

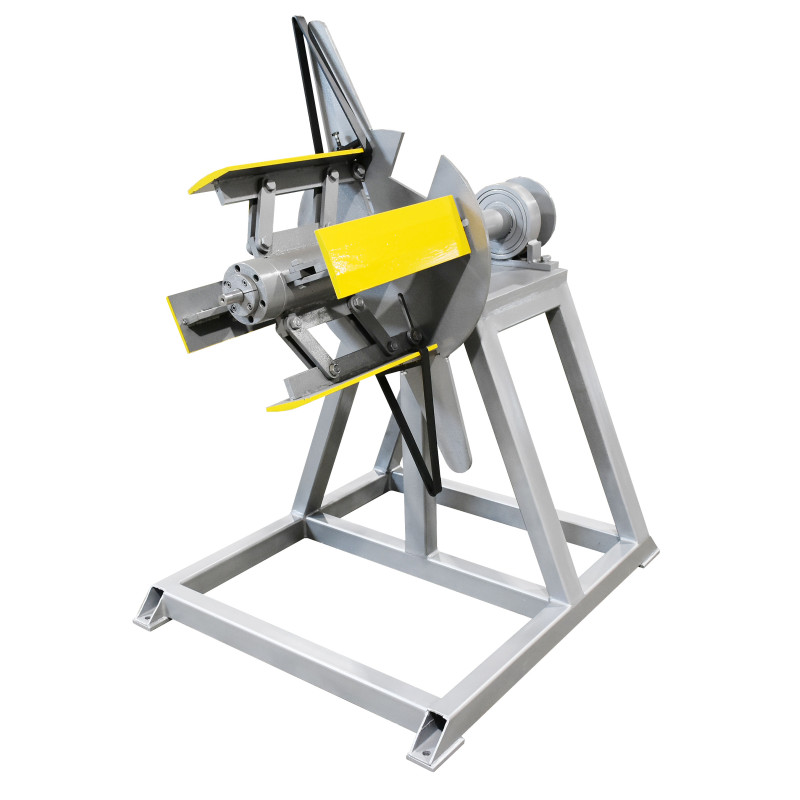

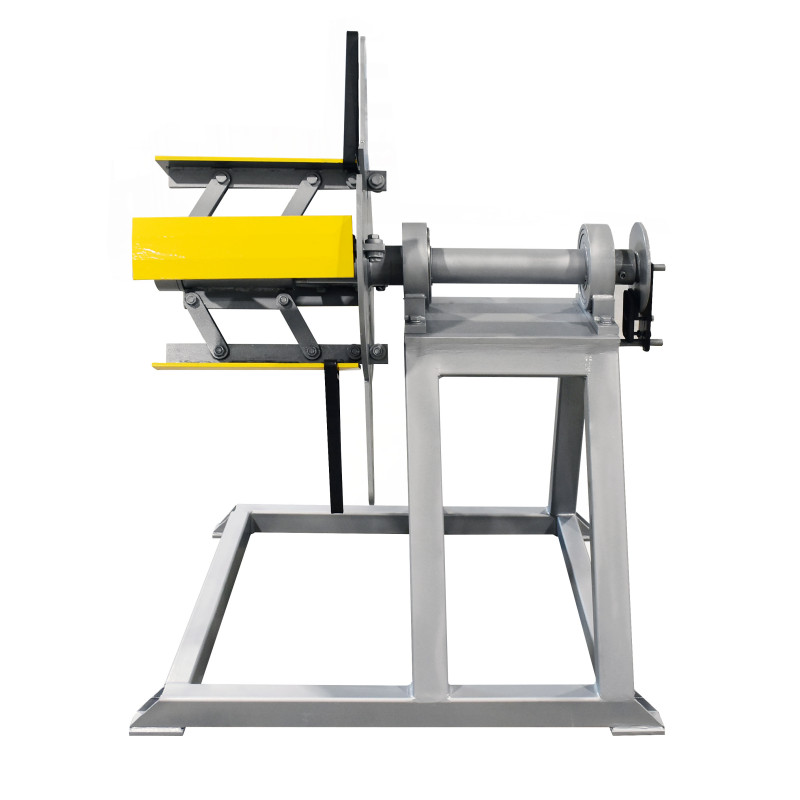

Manual Uncoiler Machine D100

The Manual Uncoiler Machine D100 is a compact and cost-effective system designed to safely hold and unwind small to medium-sized coils of metal, plastic, or paper with full operator control.

How It Works:

• The operator adjusts the mandrel diameter using a hand wrench
• The reel is set slightly smaller than the coil inner diameter
• The coil is placed onto the self-centering shaft
• The mandrel is expanded manually to securely lock the coil in place
• A mechanical brake is adjusted to control rotation speed
• The material is then unwound manually in a controlled manner

Key Features:

• Manual operation with simple mechanical adjustment system
• Self-centering coil holder for accurate positioning
• Adjustable braking system for controlled unwinding
• No electrical power required, fully mechanical design
• Compact and lightweight structure for easy installation
• Suitable for multiple types of coil materials

Specifications:

• Maximum coil weight: 2000 lbs (approx. 900 kg)

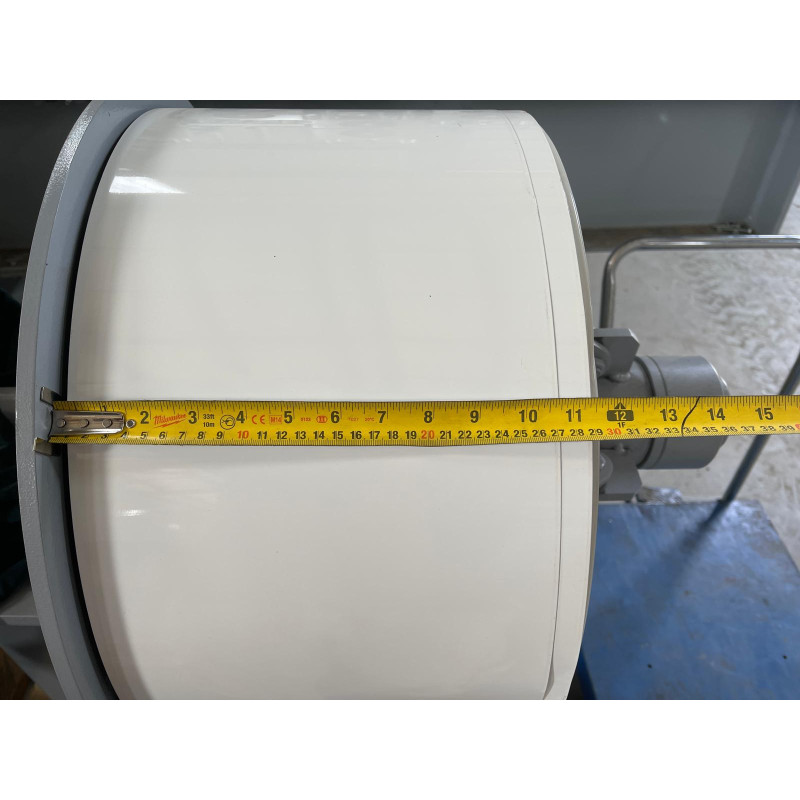

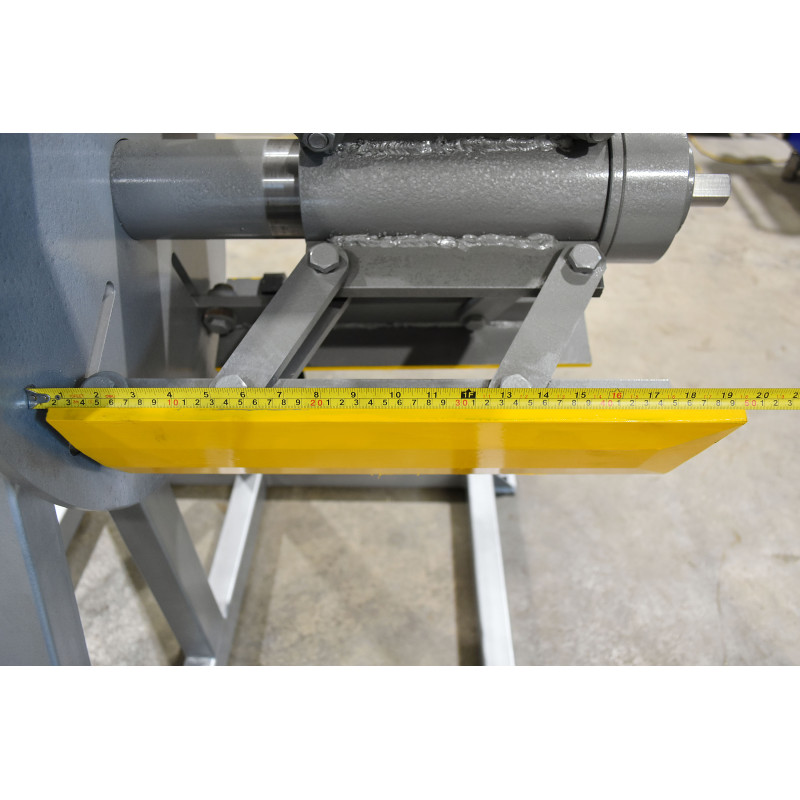

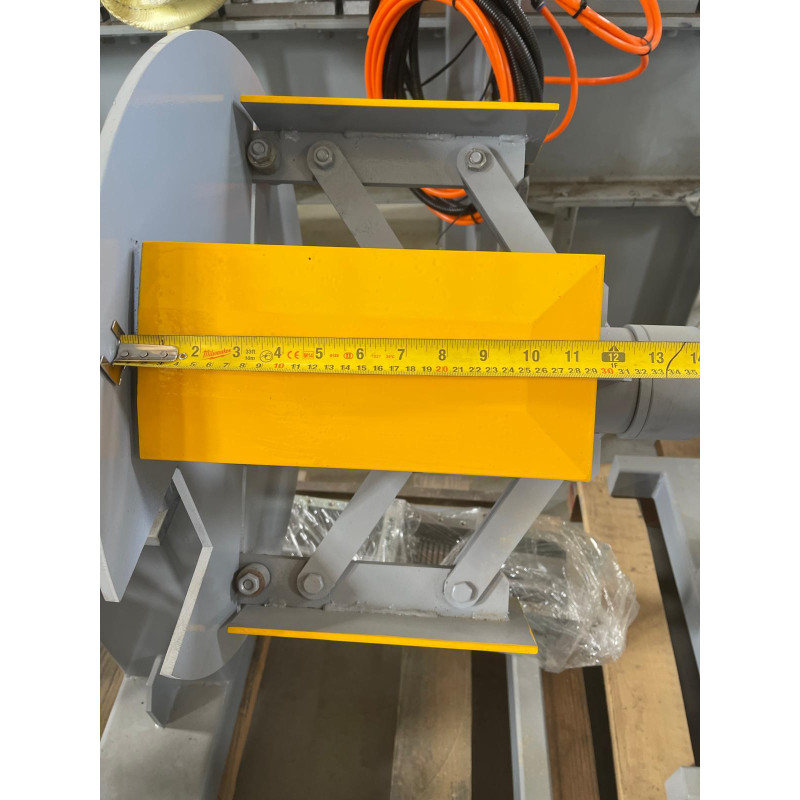

• Maximum coil width: 12 inches

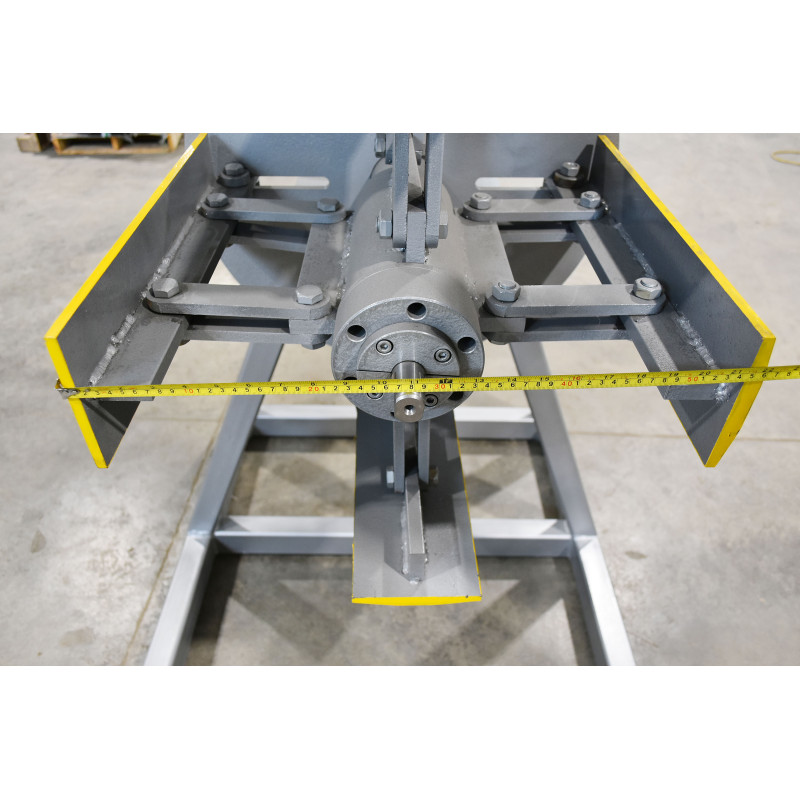

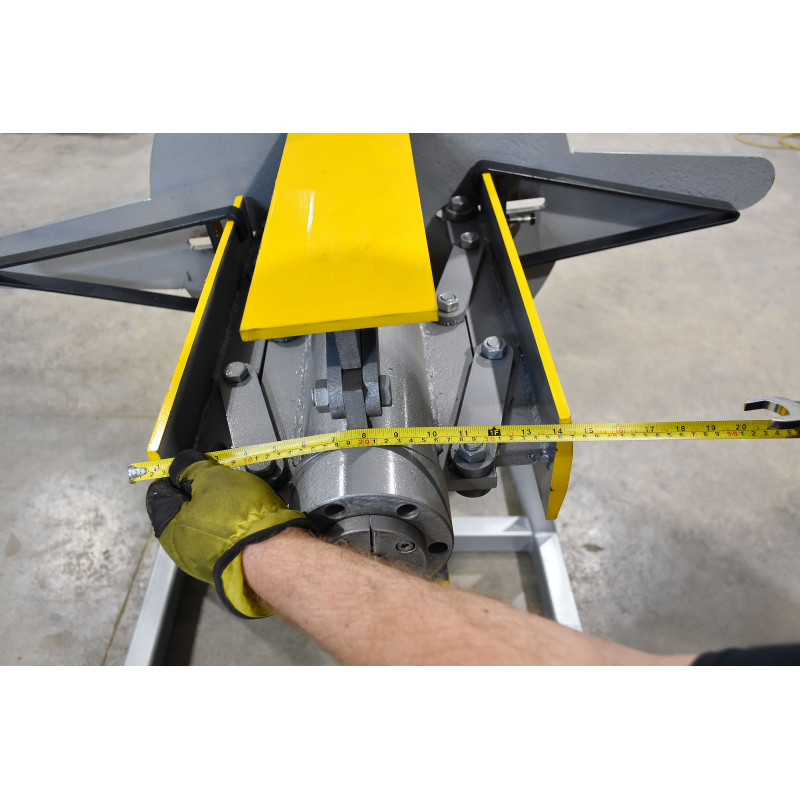

• Coil inner diameter range: 18 inches
• Operation type: manual mechanical system
• Self-centering expansion mandrel

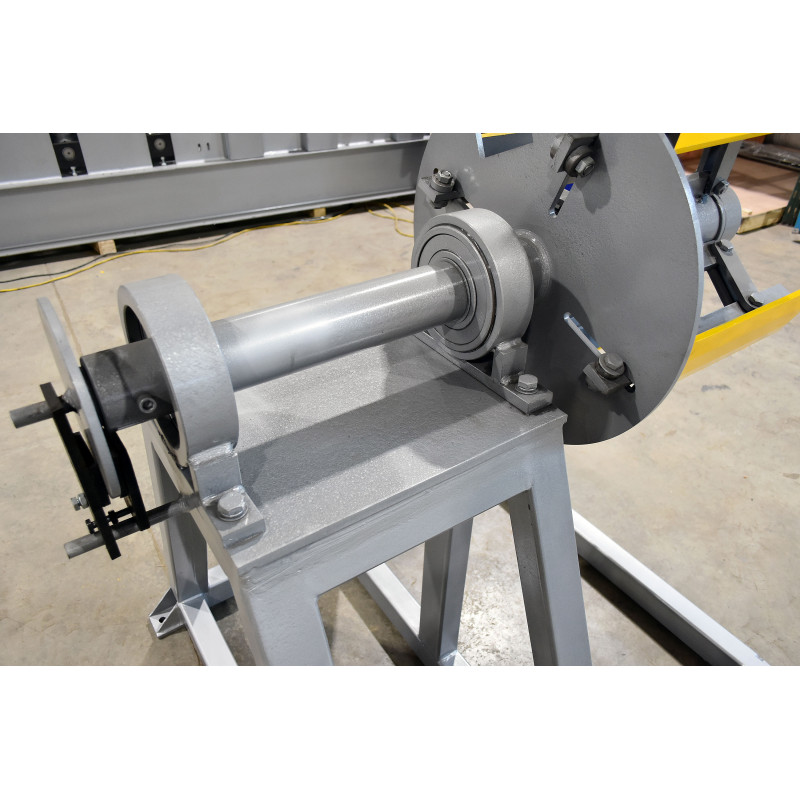

• Adjustable friction brake system

Where It Is Used:

• Small metal fabrication workshops
• Light industrial production lines
• Plastic and paper coil processing
• Cutting and shearing operations
• Auxiliary coil feeding stations

Advantages:

• Low-cost and highly reliable solution
• No electricity required for operation
• Simple maintenance and long service life
• Easy to operate with minimal training
• Safe and stable coil handling system

At Liberty Seamless Machinery, we are committed to providing durable and efficient coil handling equipment. The D100 manual uncoiler is designed for simplicity, reliability, and cost efficiency, making it an ideal solution for small-scale production environments.
