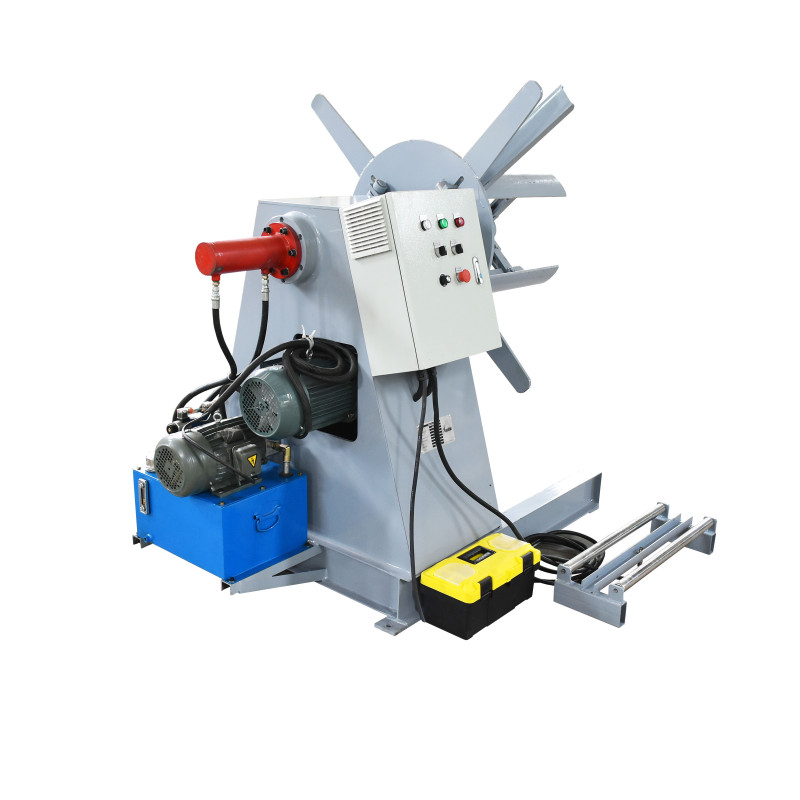

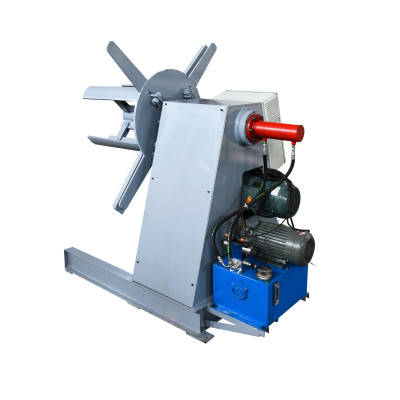

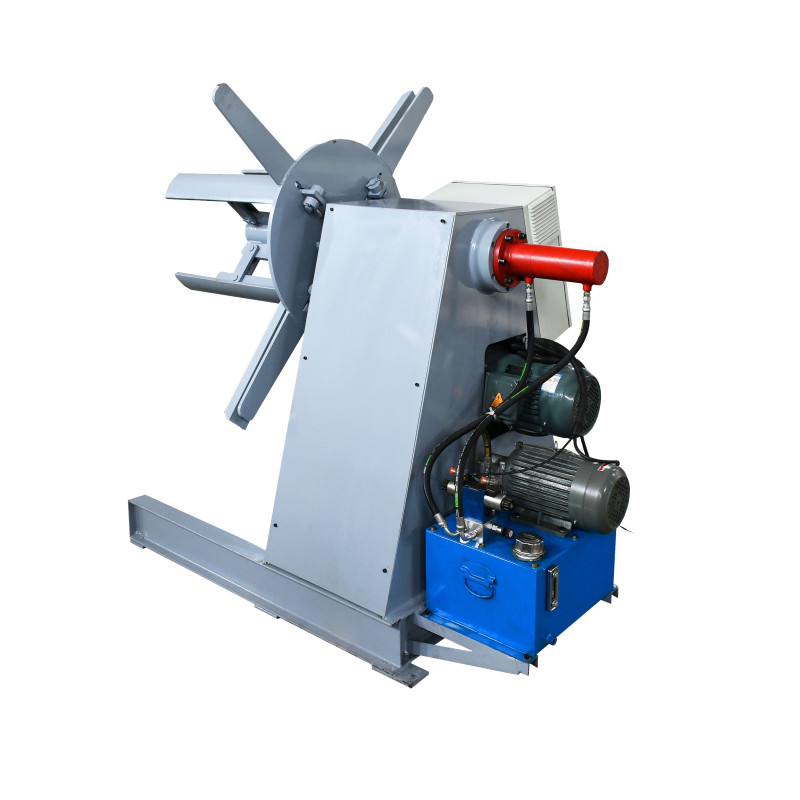

Electric Hydraulic Decoiler 6000 lbs

Our Electric Hydraulic Decoiler (Uncoiler) for coils up to 6000 lbs is a powerful solution engineered for safe, efficient, and fully controlled coil unwinding in heavy-duty applications.

How It Works:

• The coil is placed onto a hydraulic mandrel
• Hydraulic expansion securely grips the inner diameter of the coil
• An electric motor drives the rotation of the coil for smooth unwinding
• VFD system adjusts speed and tension based on production requirements
• Limit switch automatically synchronizes operation with downstream equipment

Key Features:

• Hydraulic expansion system for fast and secure coil loading
• Motorized unwinding for consistent and stable material feeding
• Variable speed control via VFD for precise operation
• Heavy-duty construction for long-term industrial use
• Reduced manual labor and improved operator safety

Specifications:

• Maximum coil weight: 6000 lbs (approx. 3 tons)

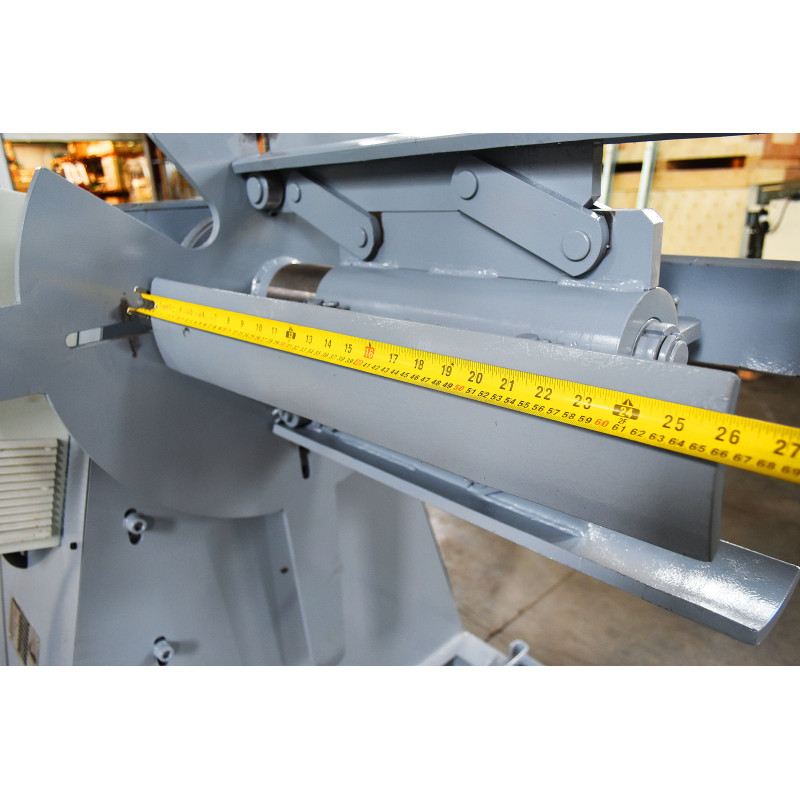

• Maximum coil width: 26 inches (660 mm)

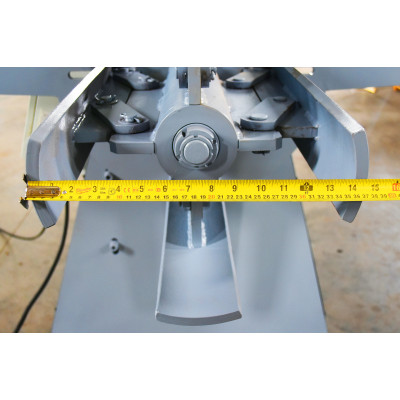

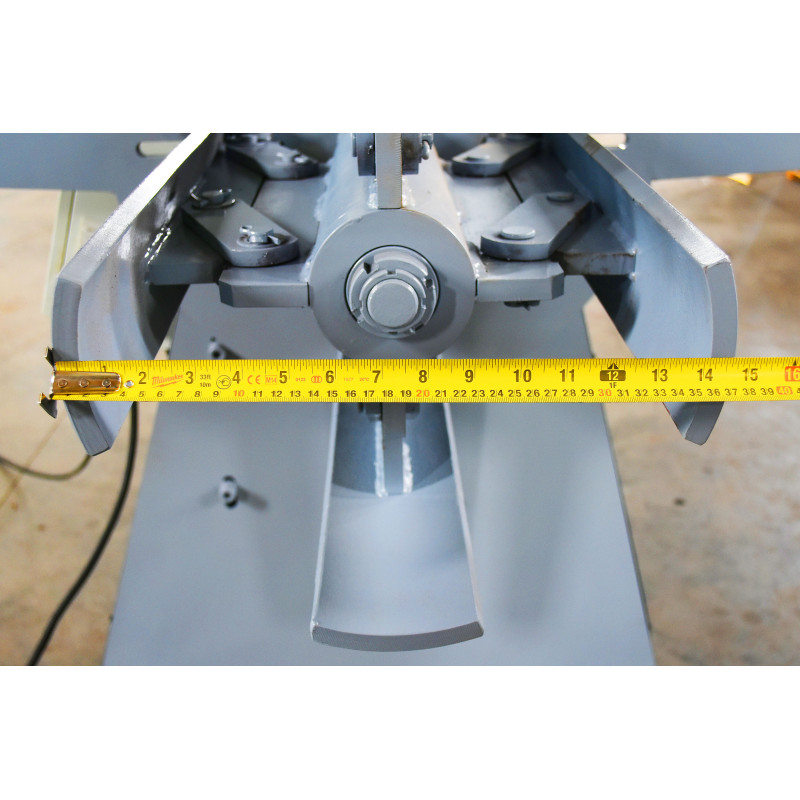

• Coil inner diameter range: 15–21 inches

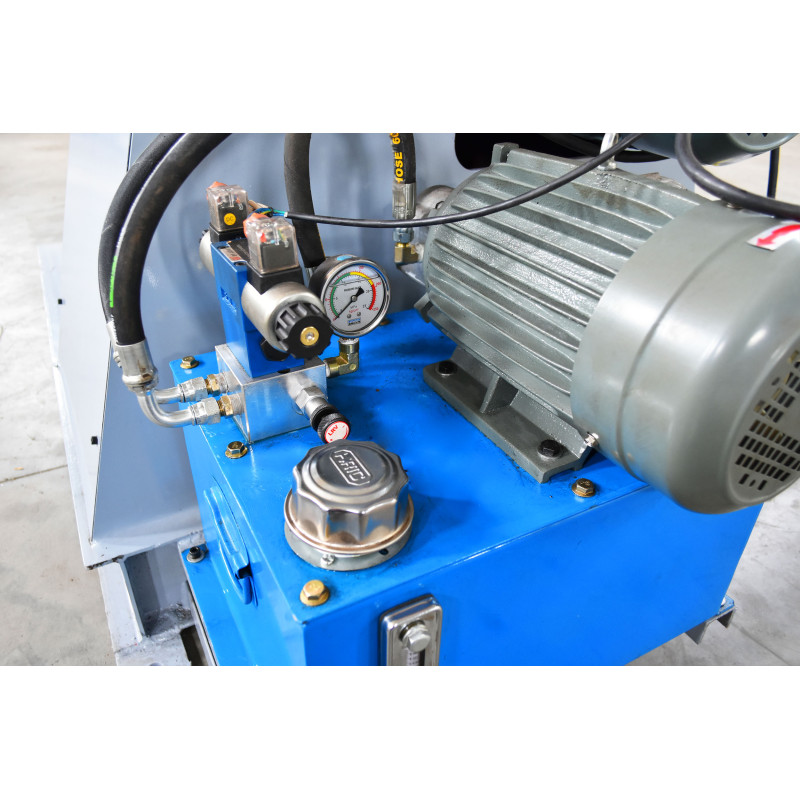

• Drive system: electric motor with hydraulic mandrel expansion

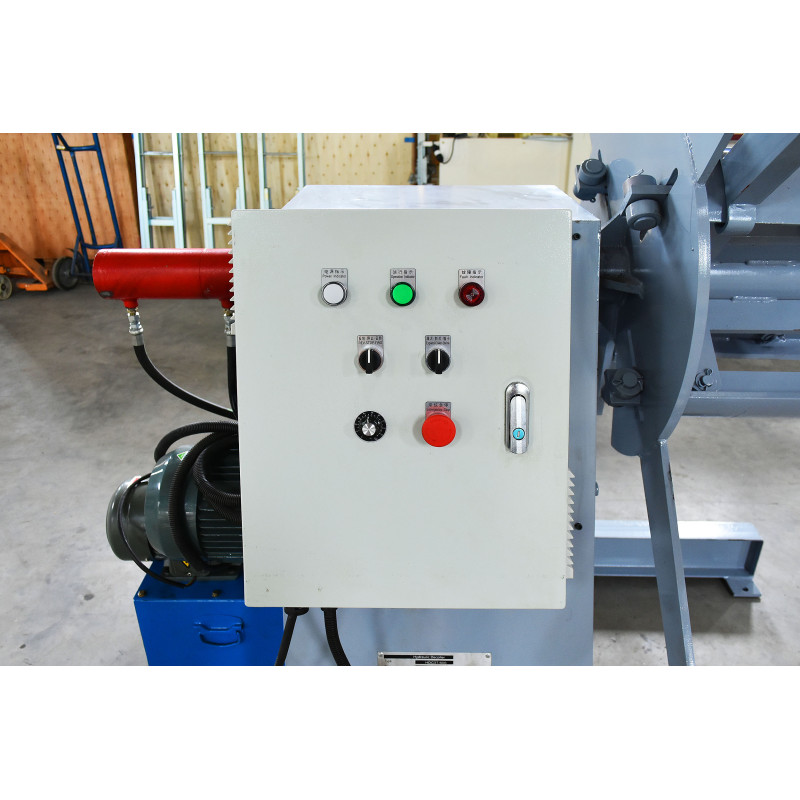

• Control system: VFD with automatic limit switch synchronization
• Power supply: compatible with 220V single-phase systems

Where It Is Used:

• Roll forming production lines
• Metal stamping operations
• Coil cutting and slitting lines
• Heavy-duty metal fabrication facilities

Advantages:

• Handles heavy coils with ease and precision
• Improves production efficiency and workflow consistency
• Minimizes wear on downstream equipment
• Provides accurate speed and tension control
• Cost-effective solution for industrial automation upgrades

At Liberty Seamless Machinery, we are committed to delivering industrial solutions that combine durability, performance, and efficiency. This electric hydraulic decoiler is designed to optimize your production line while ensuring safe and reliable operation in demanding environments.
